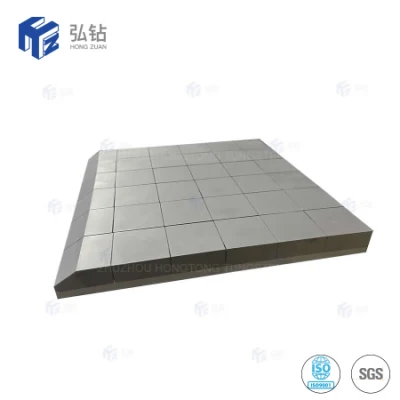

Tungsten Cemented Carbide Liner Plate for Upper Mill Side Liner

Our Tungsten Cemented Carbide Liner Plate for Upper Mill Side Liner is designed for high performance. As a factory, we ensure top quality and durability.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Carbide plate
Transport Package
as Customer Demand
Specification
200x200x10/8/6 or customized
Trademark
HONGZUAN
Origin
Hunan, China
Production Capacity
20 Ton Per Month

Product Description

Feature:
Tungsten carbide plates have high hardness, high wear-resistance, and high resistance to bending. They're widely used in cutting tool, crusher, wear parts, mold base and other related fields.

1. 100% raw material.
2. Sintered in HIP furnace
3. ISO9001: 2015 certificate.
4. Various size and grade available.
5. More than 20 years' experience.
6. OEM and ODM are accepted.

After years of researching, we gathered a good knowledge of Vacuum Welding between carbide and steel on a relatively big area , we know how to release the Inner stress of Welding to improve the Welding Quality. Our this items is a new type of Heat resisting brick mould, adopted vacuum welding between carbide and steel technology. Currently we use adhesive technology to connect the carbide part and steel part, while the carbide is easy to get off from the steel after servral time making goods. One set mould for making trick should be used for 50000times, which would waste much time to make face milling grinding for the mould. Our new moulds technology solve this problem perfectly.


The advantages for Vacuum welding carbide and steel die The combination of carbide and steel material, meet the feature of moulds, such as wear resistance, heat resistance and strengths requirements, as well as long life. As a part of mould, steel saves the production cost effectively.

Tungsten Cemented Carbide Liner Plate for Upper Mill Side Liner

Regular Size recommend:

Tungsten Cemented Carbide Liner Plate for Upper Mill Side Liner
Type L*W*H Blank Tolerance Polished tolerance
25*25*X(2~25) L:0~+0.8 W:0~+0.8 H:0~+0.8 ±0.01
50*50*X(2~50) L:0~+1.0 W:0~+1.0 H:0~+1.0
100*100*X(2~50) L:0~+1.5 W:0~+1.5 H:0~+1.0
105*105* X(2~50) L:0~+1.5 W:0~+1.5 H:0~+1.0
105*105* X(2~50) L:0~+1.5 W:0~+1.5 H:0~+1.0
150*150*X(2~50) L:0~+2.0 W:0~+2.0 H:0~+1.5
200*200*(2~50) L:0~+3.0 W:0~+3.0 H:0~+1.5
300*300*(2~50) L:0~+4.0 W:0~+4.0 H:0~+2.0
Recomend Grade:YG8;YG11;YG15 etc

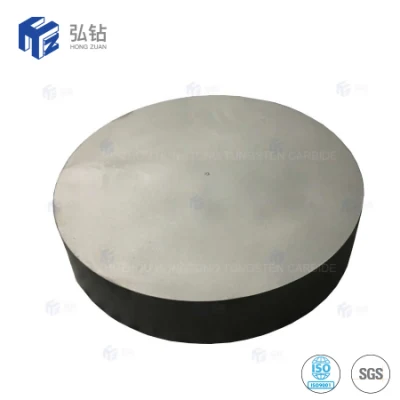

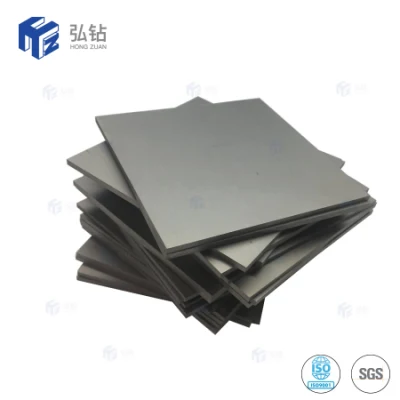

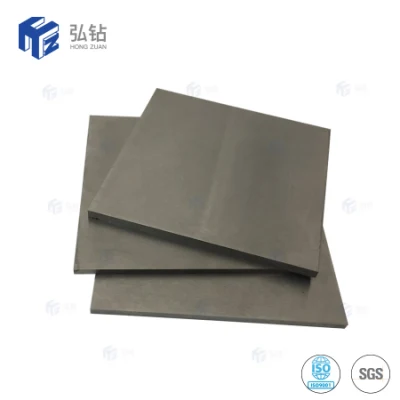

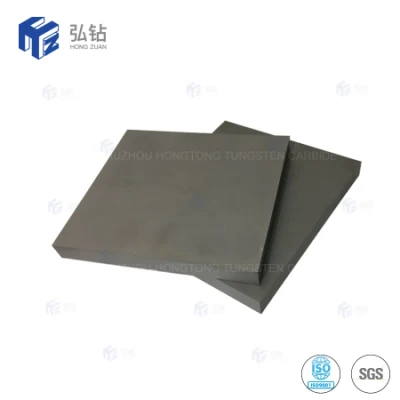

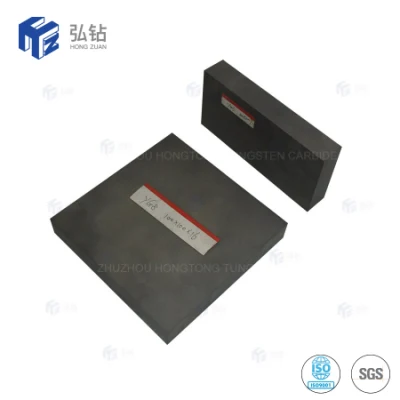

Photos Tungsten Cemented Carbide Liner Plate for Upper Mill Side Liner Tungsten Cemented Carbide Liner Plate for Upper Mill Side Liner Tungsten Cemented Carbide Liner Plate for Upper Mill Side Liner
Grade sheet
Grade Binder (Wt %) Density (g/cm3) Hardness (HRA) TRS (≥N/mm²)
YG6 6 14.9 90.5 2100
YG6A 6 14.95 92 2000
YG8 8 14.8 89.5 2200
YG13 13 14.2 87.5 2650
YG8C 8 14.7 88 2300
YG15 15 14 87 2750
YG20 20 13.5 85.5 2850

Application: Tungsten Cemented Carbide Liner Plate for Upper Mill Side Liner

Company Profile
Tungsten Cemented Carbide Liner Plate for Upper Mill Side LinerTungsten Cemented Carbide Liner Plate for Upper Mill Side Liner
ZhuZhou HongTong Tungsten Carbide Co., Ltd.,specialized in production carbide products more than 20 years and located in the hometown of tungsten carbide in China. We can manufacture all kind of tungsten carbide products. Our products are utilized in industrial, aerospace, machining, metallurgy, oil drilling, mining tools, electronic communications, construction applications. Now we are exporting to 46 countries. including USA, Russian , India , Italy, Poland ,France,Brazil etc .

We have a professional QC team follow to the System of ISO9001:2015, Covering the Raw Materials Incoming, Production Processes,Finished Products and Packaging to ensure high quality products output.

Tungsten Cemented Carbide Liner Plate for Upper Mill Side Liner

Tungsten Cemented Carbide Liner Plate for Upper Mill Side Liner

We mainly produce Tungsten Carbide Ball and Seat, Agriculture wear parts plates, Carbide tips, Carbide tiles,
HPGR Stud pins, Brazed Inserts, Gripper Pads, Buttons, VSI Bars, Rod, Strips, PDC substrate, Weld on teeth,
Bushings, Wire Drawing Dies, Heading Dies, Seal Ring, Nozzles, and other customized carbide products.


Tungsten Cemented Carbide Liner Plate for Upper Mill Side Liner

Product packaging
Tungsten Cemented Carbide Liner Plate for Upper Mill Side Liner

FAQ

Q1 : Are you Factory or trading company ?
We are Factory with 20 years of production experience.

Q2: What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning,
stoving, oil coating, cover pressing, testing, package.

Q3: How to control the products quality?
All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.

Q4: What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large quantity, by sea.

Q5: Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products

Q6: How to place an order for Good performance nonstandard products by stellite alloy? 1. Fill your Order List in our online
Inquiry System (Also you can directly contact our salesperson by E-mail / Skype / Whats App) 2. We will make a feedback to you ASAP after receive your order list.

Q7: What's your delivery time ?
For the normal type which we have mold it takes 7-15 days after receiving the advance payment. For the non standard which we do not have mold it takes 15-35 days after receiving the advance payment.
