Tungsten Two Coolant Hole Rod Blank Drill Bar

Shop the Tungsten Two Coolant Hole Rod Blank Drill Bar at our factory for top-quality, durable drilling tools. Browse our selection today!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Detailed Photos
Overview

Basic Info.

Model NO.
h4 h5 h6 h7 for High feed insert
Od
0.2-50mm
ID
Big Than 0.05
Grain Size
0.2-0.8 Um
Wc+Co Powder
100% Virgin Material
Surface Finishing
Unpolish
Transport Package
Wooden Case
Specification
Customized
Trademark
Evergreen or OEM
Origin
China
HS Code
8209009000
Production Capacity
500000/Years

Product Description

Tungsten Two Coolant Hole Rod Blank Drill Bar

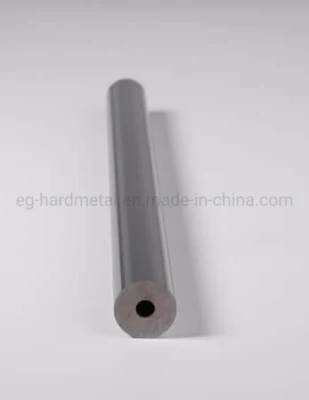

Carbide rods with central channels: 1 central hole with or without 2, 3, 4, or 5 lateral exits, as sintered or ground

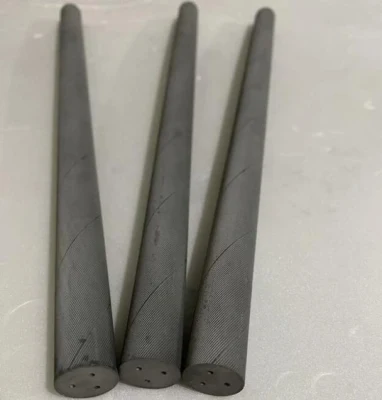

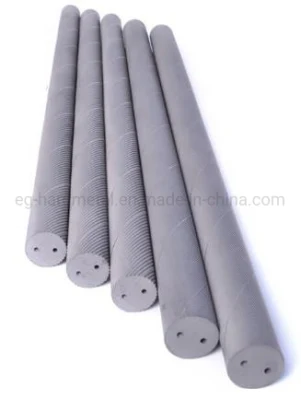

Carbide Rods with Two Parallel Cooling Channels,
2 parallel holes with standard or reduced bolt circle as sintered or ground

Tungsten Two Coolant Hole Rod Blank Drill Bar


Tungsten carbide application:
According to the needs of the applicable tool grinding into a end milling, drill, turning tools and other cutting tools.This tungsten steel round rod has the characteristics of good rigidity, strong wear resistance, processing hardness HRC55 material without pressure.It
is widely used in tungsten steel mold, tools, punching needle, test rod, needle gauge, thimble, etc

Recommanded grades to your refer:
EG GRADE ISO CODE GRAIN SIZE(μm) DENSITY(G/cm³) HARDNESS TRS(N/MM)
EG06 K05 0.5 14.8 94.3 3800
EG08 K10 0.6 14.75 92.2 3900
YL10.2 K20 0.6 14.5 91.8 4000
EG12 K30 0.5 14.1 92.5 4000
YG15X K40 0.6 14.0 89.5 4000

Dimension and Tolerance

Dimension(mm) Tolerance of diameter(mm) Tolerance of length(mm)
Min BL-Φ3.0×330 +0.20/+0.45 -0/+5.0
Max BL-Φ50.0×330 +0.20/+0.45 -0/+5.0
Detailed Photos

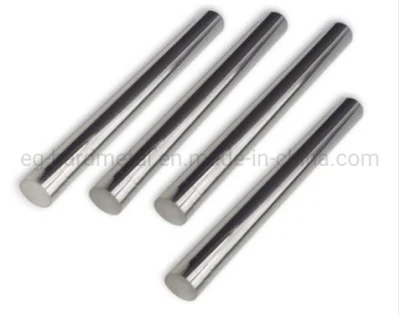

Full range of carbide rod

Tungsten Two Coolant Hole Rod Blank Drill Bar

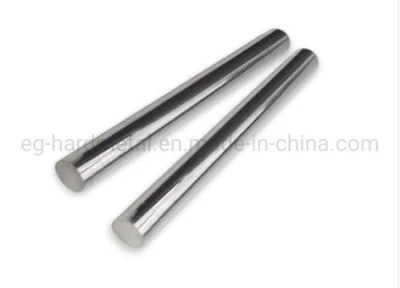

Other carbide product from E.G.
Tungsten Two Coolant Hole Rod Blank Drill Bar   Tungsten Two Coolant Hole Rod Blank Drill Bar Tungsten Two Coolant Hole Rod Blank Drill Bar

Tungsten Two Coolant Hole Rod Blank Drill Bar


Product description:
The tungsten carbide for coolant hole around rods produced by adopt spray granulation and low pressure sintering process with stable performance and higher strength


Welcome to contact fot latest discount
