Basic Info.
Model NO.
YG20C OD20*ID4*52mm
Outdiameter
20mm
Inner Diameter
4mm
Thickness
52mm
Surface
Only Sintered
Transport Package
25kg. Carton
Specification
YG20C OD20*ID4*52mm
Trademark
ZZUP
Origin
Zhuzhou, Hunan, China
HS Code
820900100
Production Capacity
10000000PCS/Month
Product Description

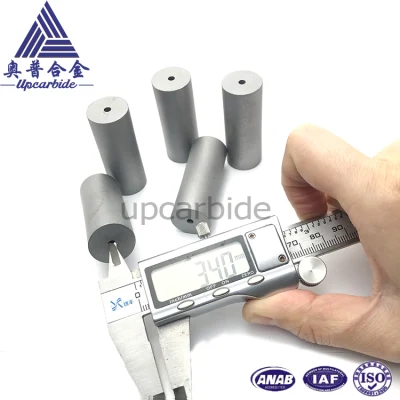

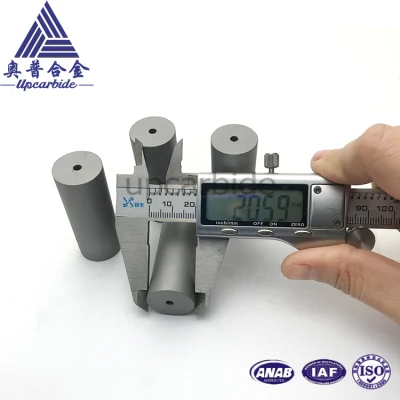

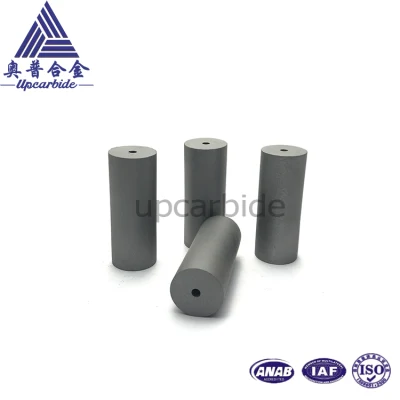

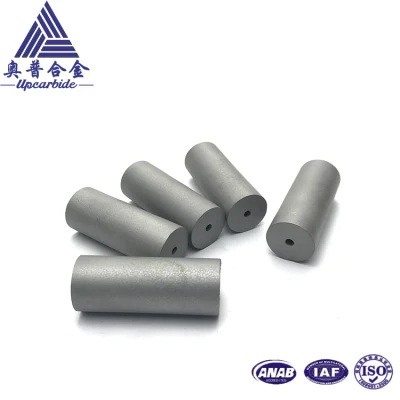

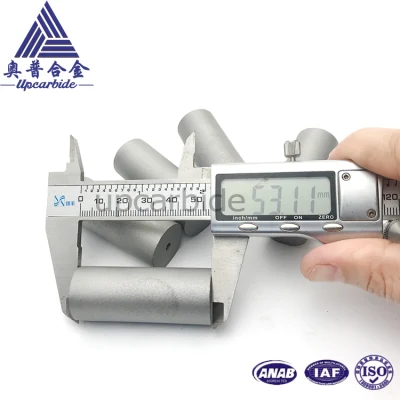

YG20C OD20*ID4*52mm Tungsten Carbide Stamping Mould punch cold heading die
YG20C OD20*ID4*52mm Tungsten Carbide Stamping Mould punch cold heading die
Specifications
1. Grade: YG20C , 20% Co ,Coarse grain sizes 1.5um
2. YG8,YG6,YG3,YG10,YG15,YT14,YT5,YT05,YT15,YG20,YG25,YL10.2,YS2T,YG6X etc all kinds of grades for your choose.
3. Can product customize drawing,sizes and shape.
YG20C OD20*ID4*52mm Tungsten Carbide Stamping Mould punch cold heading die
Specifications
1. Grade: YG20C , 20% Co ,Coarse grain sizes 1.5um
2. YG8,YG6,YG3,YG10,YG15,YT14,YT5,YT05,YT15,YG20,YG25,YL10.2,YS2T,YG6X etc all kinds of grades for your choose.
3. Can product customize drawing,sizes and shape.
Products Show
Grades choosing
Common grades for all kinds metal
Grades for cold mill roll or hot mill roll steel
Common grades for all kinds metal
| Grade | Density g/cm3 | Hardnes HRA | T.R.S Mpa | Performance&application recommended |
| YG6A | 14.85 | 92.5 | 2000 | Fine grain alloy,good wear resistance.it is suitable for manufacturing forming cutter,wear-resistant parts etc. |
| YG8 | 14.7 | 89.8 | 2800 | High bending strength,wear resistance lower than YG6A, suitable for manufacturing cutter ,wear-resistant parts etc. |
| YG11 | 14.4 | 88.5 | 2900 | High bending strength,wear resistance lower than YG6A, suitable for manufacturing cutter ,wear-resistant parts etc. |
| YG15 | 14.0 | 87.0 | 3000 | Suitable for manufacturing punching dies, wear-resistant parts. |
| YG20 | 13.5 | 85.5 | 2800 | High bending strength,suitable for manufacturing progressive dies and other punching dies. |
| YG25 | 13.1 | 81.5 | 2950 | High bending strength,wear resistance lower than YM6A, suitable for manufacturing cutter ,wear-resistant parts etc. |
| YS2T | 14.25 | 92.0 | 2500 | Fine grain alloy, with high wear resistance, bending strength, bonding resistance and thermal strength. it is suitable for machining refractory alloys,stainless steel, high manganese steel, etc. |
Grades for cold mill roll or hot mill roll steel
| Grade | Wc (%) | Co (%) | Ni (%) | Cr (%) | Density g/cm3 | Hardness ≥HRA | T.R.S ≥Nmm2 | Compression Strength ≥Nmm2 | Thermal Expansivity 10-6/K | Thermal Conductivity W/cm.k | Young's Elastic Modulus KN/mm2 |
| YGR60 | 70 | 30 | 12.8 | 78 | 2200 | 2900 | 7 | ||||
| YGR55 | 76 | 24 | 13.1 | 80 | 2400 | 3000 | 6.8 | 0.17 | 420 | ||
| YGR45 | 80 | 20 | 13.5 | 81 | 2500 | 3100 | 6.4 | 0.14 | 480 | ||
| YGR40 | 82 | 18 | 13.7 | 82.5 | 2600 | 3200 | 6.2 | 0.2 | 530 | ||
| YGR30 | 85 | 15 | 14.2 | 84.8 | 2700 | 3300 | 6.1 | 0.2 | 530 | ||
| YGR25 | 88 | 12 | 14.3 | 85 | 2600 | 3400 | 6 | 0.2 | 550 | ||
| YGH55 | 74 | 26 | 12.9 | 80 | 2200 | 3000 | 7 | 0.17 | 450 | ||
| YGH45 | 75 | 25 | 13.4 | 82 | 2400 | 3100 | 6.5 | 0.18 | 480 | ||
| YGH40 | 82 | 18 | 13.6 | 83.5 | 2500 | 3200 | 6.4 | 0.19 | 500 | ||
| YGH30 | 85 | 15 | 13.9 | 83.5 | 2400 | 3300 | 6.1 | 0.2 | 540 | ||
| YGH25 | 88 | 12 | 14.1 | 85 | 2300 | 3400 | 6 | 0.2 | 560 |
Common sizes:
| Outdiameter (mm) | Inner diameter (mm) | Height (mm) | Outdiameter (mm) | Inner diameter (mm) | Height (mm) | |
| 90 | 51 | 4~100 | 125 | 45 | 4~100 | |
| 90 | 20 | 125 | 80 | |||
| 90 | 3 | 130 | 40 | |||
| 95 | 75 | 130 | 50 | |||
| 95 | 68.5 | 140 | 90 | |||
| 95 | 74 | 142 | 78 | |||
| 100 | 65 | 150 | 90 | |||
| 100 | 62.1 | 210 | 200 | |||
| 100 | 20 | 161 | 108 | |||
| 105 | 46 | 212 | 120 | |||
| 105 | 65.5 | 158.8 | 87.32 | |||
| 105 | 81 | 170.66 | 95 | |||
| 105 | 75 | 180 | 87.32 | |||
| 110 | 20 | 180 | 120.65 | |||
| 110 | 30 | 228.3 | 126 | |||
| 110 | 90 | 208 | 126 | |||
| 114 | 94 | 228 | 130 | |||
| 115 | 65 | 285 | 160 | |||
| 115 | 60 | 320 | 260 | |||
| 120 | 46 | 280 | 240 | |||
| 120 | 65 | 318 | 280 | |||
| 120 | 60 | 600 | 550 | |||
| 125 | 45 | 800 | 200 |
Other sizes can be offered as per customers' requirements
