Product Description

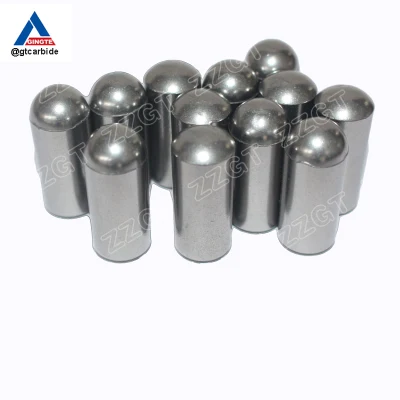

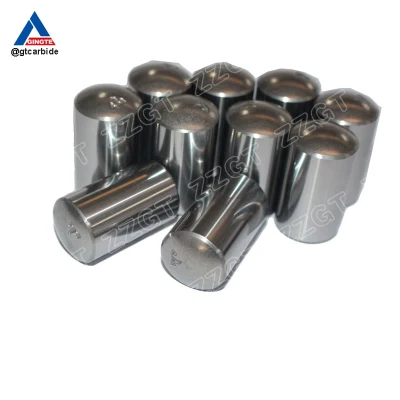

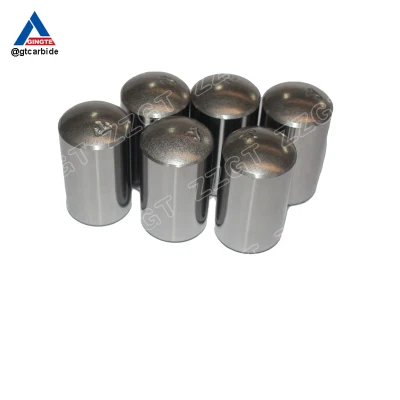

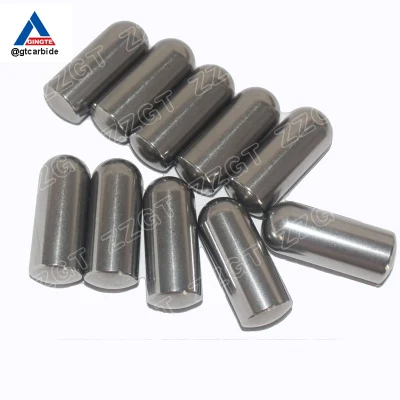

Tungsten carbide stud pins are an very important wear parts applied in high pressure grinding roller machine which are widly used in the cement , Iron core,mining crushing industry. The carbide pins of High pressure grinding roller machine also are specifically used for Briquetting applications.
Hard metal studs pins due to its high wear resistance , which make HPGR having more longer lifte time . In the mean time , our cemented carbide stud pins have over 4000 megapascals., So high toughness makes the studs pins not easily creak.
Our carbide studs in the China mainland have built very steady, longer markets . Now we are cooperating with some bigger cement factories, such as TAPAI CEMENT FACTORY which are our important partner. There are also other equipment manufacturers of the grinding rolling machine which are using our stud pins.
Moreover we have exported tungsten carbide pins to European , Asia and Noth America.
We accept customized stud pins, just feel free to send the drawing to us.
| Carbide grade | Mechanical Property | Applications | ||||
| Denstiy g/cm³ | Coercivity KA/M | Hardness HRA | T.R.S ≥N/mm² | %CoM | ||
| ZD01 | 14.16-14.8 | 6.8-9.9 | 86.2-89.3 | 3010 | 10.10-11.80 | Metal Ore |
| ZD02 | 14.12-14.56 | 5.8-9.0 | 85.3-88.3 | 3090 | 10.31-12.64 | Steel Slag |
| ZD03 | 13.98-14.46 | 6.0-9.5 | 86.5-88.5 | 3100 | 10.50-14.10 | Cement raw meal |
| ZD05 | 13.60-13.98 | 6.8-8.1 | 85.6-88.2 | 3180 | 12.8-15.60 | Common Cement Clinker |
| ZD08 | 13.15-13.66 | 7.6-9.8 | 85.2-89 | 3200 | 16.00-17.50 | Abrasive Corrosive Cement Clinker |
| ZD06 | 13.20-14.06 | 4.2-6.6 | 83.0-87.6 | 2920 | 14.80-18.99 | Edge block |
| ZD0 | 14.16-14.83 | 8.7-10.1 | 87.5-89.9 | 2795 | 8.40-11.25 | Briquetting application |
