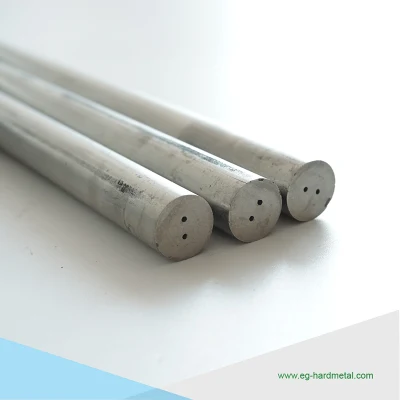

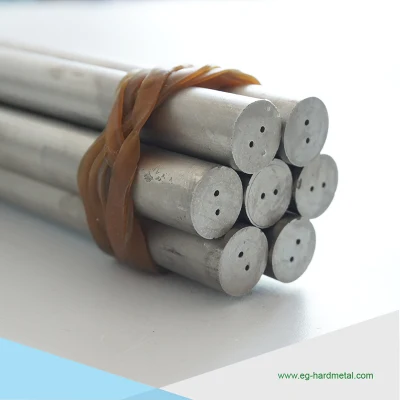

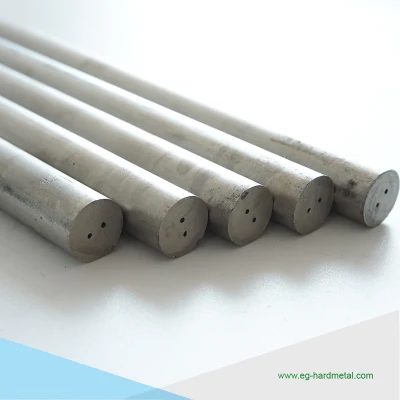

Yg15X Carbide Rods Blanks Tungsten Carbide Tools with Two Straight Coolant Hole

Looking for Yg15X carbide rods blanks with straight coolant holes? Our factory offers high-quality tungsten carbide tools for your machining needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Detailed Photos
  • Production Process
  • Packaging & Shipping
Overview

Basic Info.

Model NO.
YG15X
Standard
DIN
Customized
Customized
Material
Tungsten Carbide
Application
Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal Engraving Machinery, Metal Casting Machinery
Grade
Yl10.2,Yg115X,Yg8X Customized
Hardness
>91.5 Hra
Diameter
Dia. 0.5~50mm
Usage
for Making End Mills and Drills
Transport Package
Plastic Box
Specification
H6/h6 Cemented Carbide Rod
Trademark
Evergreen or OEM
Origin
China
HS Code
8209009000
Production Capacity
5tons Per Month

Packaging & Delivery

Package Size
40.00cm * 20.00cm * 20.00cm
Package Gross Weight
1.000kg

Product Description

Product Description
Yg15X Carbide Rods Blanks Tungsten Carbide Tools with Two Straight Coolant Hole

We provide high quality tungsten carbide rods with the following advantages:
1. 100% Virgin raw material
2. Advanced production equipment/test equipment (With HIP sintering).
3. With production experience over 25 years. We can make extruded tungsten carbide rod or die pressing tungsten carbide tube.
4. Standard length 100mm and 330mm, dia. from 0.5mm to 60mm, also can produce according to customers' request.
5. Competitive price and fast delivery

Yg15X Carbide Rods Blanks Tungsten Carbide Tools with Two Straight Coolant Hole
Recommanded grades to your refer:

EG GRADE ISO CODE GRAIN SIZE(μm) DENSITY(G/cm³) HARDNESS TRS(N/MM)
EG06 K05 0.5 14.8 94.3 3800
EG08 K10 0.6 14.75 92.2 3900
YL10.2 K20 0.6 14.5 91.8 4000
EG12 K30 0.5 14.1 92.5 4000
YG15X K40 0.6 14.0 89.5 4000

Dimension and Tolerance
Dimension(mm) Tolerance of diameter(mm) Tolerance of length(mm)
Min BL-Φ3.0×330 +0.20/+0.45 -0/+5.0
Max BL-Φ50.0×330 +0.20/+0.45 -0/+5.0

Diameter h4 h5 h6 h7
0-3.0mm
0-0.1181 in.
0.003mm
0.00012 in.
0.004 mm
0.00015 in.
0.006 mm
0.00024 in.
0.010 mm
0.00039 in.
3.001-6.0mm
0.1181 - 0.2362 in.
0.004mm
0.00015 in.
0.005 mm
0.00020 in.
0.008 mm
0.00031 in.
0.012 mm
0.00047 in.
6.001-10.0 mm
0.2363 - 0.3937 in.
0.004mm
0.00015 in.
0.006 mm
0.00024 in.
0.009 mm
0.00035 in.
0.015 mm
0.00059 in.
10.001-18.0 mm
0.3938 - 0.7087 in.
0.005mm
0.00020 in.
0.008 mm
0.00031 in.
0.011 mm
0.00043 in.
0.018 mm
0.00071 in.
18.001-30.0 mm
0.7088 - 1.1811 in.
0.006mm
0.00024 in.
0.009 mm
0.00035 in.
0.013 mm
0.00051 in.
0.021 mm
0.00083 in.
30.001-50.0 mm
1.1812 - 1.9685 in.
0.007mm
0.00028 in.
0.011 mm
0.00043 in.
0.016 mm
0.00063 in.
0.025 mm
0.00098 in.

Yg15X Carbide Rods Blanks Tungsten Carbide Tools with Two Straight Coolant Hole
Detailed Photos

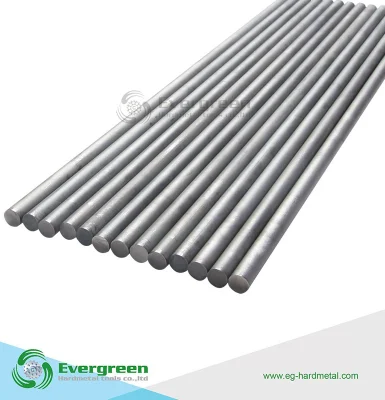

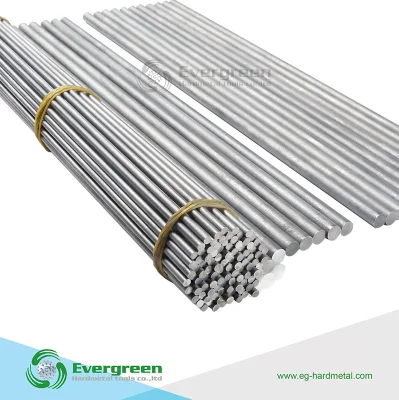

Products Show:


Yg15X Carbide Rods Blanks Tungsten Carbide Tools with Two Straight Coolant Hole
Yg15X Carbide Rods Blanks Tungsten Carbide Tools with Two Straight Coolant Hole



Production Process



Yg15X Carbide Rods Blanks Tungsten Carbide Tools with Two Straight Coolant Hole Yg15X Carbide Rods Blanks Tungsten Carbide Tools with Two Straight Coolant Hole
Packaging & Shipping

Quality&Packing

Yg15X Carbide Rods Blanks Tungsten Carbide Tools with Two Straight Coolant Hole
Yg15X Carbide Rods Blanks Tungsten Carbide Tools with Two Straight Coolant Hole


Welcome to contact:


Kindly let us know your request, such as surface condition, tolerance other mechanical and technical details.
Material dimension Thickness&width&length, diameter&length.
Or let us know the application of products, we will recommend the most suitable products with details for confirmation.
Please kindly supply us drawings If possible.
