Basic Info.
Model NO.
4.5*6.0*305mm
Surface
Only Sintered
Width
6.0mm
Thickness
4.5mm
Length
300mm
Transport Package
25kg. Carton
Specification
YG12
Trademark
ZZUP
Origin
Zhuzhou, Hunan, China
HS Code
820900100
Production Capacity
10000000PCS/Month
Product Description

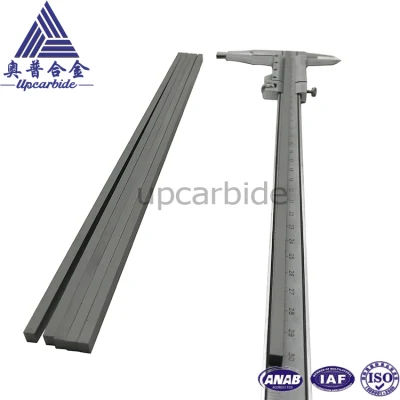

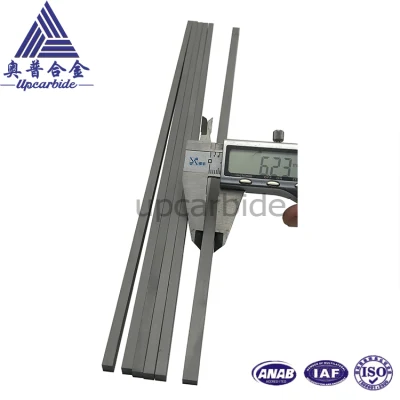

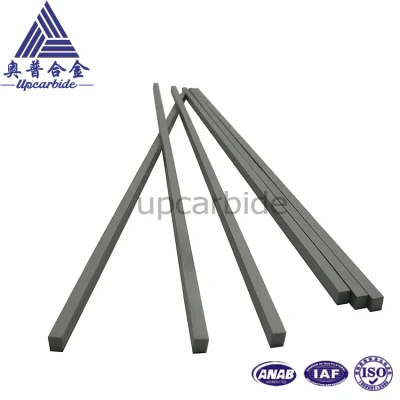

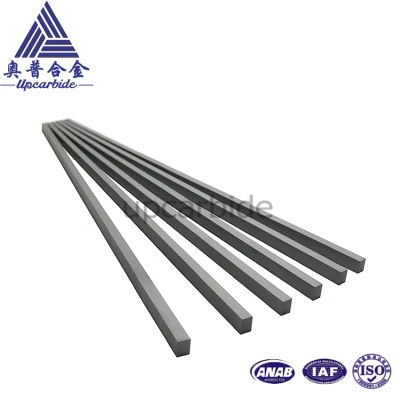

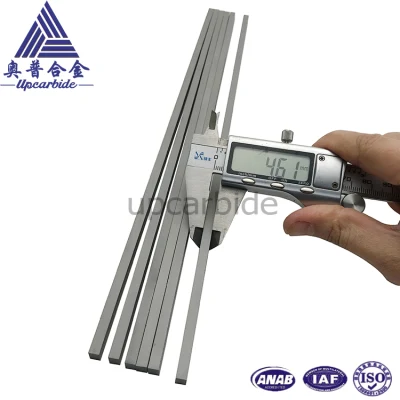

YG12 12%Co 4.5*6.0*305mm only sintered tungsten carbide flat bars
Specifications
1. YG8,YG6,YG10,YG15,YG20,YG25,YL10.2,YS2T,YG6X etc all kinds of grade
s for your choose.
2. Supply sintered or ground and polished surface.
3. Can HIP sintered,higher harndess, strength and density.
4. We have more than 1000 sets molds for different sizes.
5. Supply customized package.
6. Can product customize sizes and shape.
Specifications
1. YG8,YG6,YG10,YG15,YG20,YG25,YL10.2,YS2T,YG6X etc all kinds of grade
s for your choose.
2. Supply sintered or ground and polished surface.
3. Can HIP sintered,higher harndess, strength and density.
4. We have more than 1000 sets molds for different sizes.
5. Supply customized package.
6. Can product customize sizes and shape.
Products Show
Grades choosing
| Grade | Density g/cm3 | Hardnes HRA | T.R.S Mpa | Performance&application recommended |
| YG6 | 14.90 | 90.5 | 2400 | Good wear resistance,suitable for machining hard, rawwood,aluminum section bar,brass rod and cast iron. |
| YG6X | 14.85 | 92.5 | 2000 | Wear resistance higher than YG6,suitable for machining hard,rawwood,aluminum section bar,brass rod and cast iron. |
| YG8 | 14.7 | 89.8 | 2800 | High wear and impact resistance,suitable for machining dry wood,soft wood and non-ferrous metal section bar |
| YS2T | 14.25 | 92.0 | 2400 | Fine grain alloy,with high wear resistance,bending strength,bonding resistance and thermal strength.lt is suitable formachining refractory alloys,stainless steel,high manganesesteel,etc. |
| YL10.2 | 14.45 | 91.8 | 3000 | Wear resistance and strength comparatively higher,suitable for machining cast iron,non-ferrous metal and non-metallid materials |
Other grades and sizes can be offered as per customers' requirements
Sizes choosing
| W(mm) | T(mm) | L(mm) | | W(mm) | T(mm) | L(mm) |
| 3~10 | 1.2~10 | 10~800 | | 50~60 | 1.2~10 | 10~800 |
| 10~20 | 1.2~10 | 10~800 | | 60~70 | 1.2~10 | 10~800 |
| 20~30 | 1.2~10 | 10~800 | | 70~80 | 1.2~10 | 10~800 |
| 40~50 | 1.2~10 | 10~800 | | 80~100 | 1.2~10 | 10~800 |
| 17 | 1.2~10 | 10~800 | | | | |
