Yg8 Tungsten Carbide Strip for Making Conveyor Belt Scraper Blades

Get high-quality Yg8 Tungsten Carbide Strip for making conveyor belt scraper blades at our factory. Durable and reliable for long-lasting performance.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • After Sales Service
Overview

Basic Info.

Model NO.
customized and standard
Tolerance
+1 +2
Grind
Surface Grind
MOQ
1PCS
Transport Package
Carton
Specification
Customized
Trademark
Evergreen
Origin
China
HS Code
8209009000
Production Capacity
1000000/Month

Product Description

YG8 Tungsten Carbide Strip for Making Conveyor Belt Scraper Blades

Product Description


Tungsten carbide plate has high hardness and high wear resistance, it is a ideal choice to used in cutting kinds of wood.

With high quality raw material and advanced equipment, we are provides customer superior quality carbide strips.
- Easy to be brazed, good wear resistance and toughness.
- Untrafine grain size raw material to keep excellent strength and hardness.
- Both standard sizes and customizes sizes are available.


Properties Of Grade

Grade Density (g/cm3) Hardness(HRA) TRS(MPa)
YG6 14.95 90.5 1900
YG6X 14.95 91.5 1800
YG8 14.8 89.5 2200
YL10.2 14.5 91.8 2400
YG15 14 87.5 2800
VA95 13.1 84 2900

Type and Size
Type T*W*L (mm) T (mm) W (mm) L (mm)
EG05 T x 5 x 320 2.0~15.0 5 320
EG06 T x 6 x 320 2.0~15.0 6 320
EG07 T x 7 x 320 2.0~15.0 7 320
EG08 T x 8 x 320 2.0~15.0 8 320
EG09 T x 9 x 320 2.0~15.0 9 320
EG10 T x 10 x 320 2.0~15.0 10 320
EG11 T x 11 x 320 2.0~15.0 11 320
EG12 T x 12 x 320 2.0~15.0 12 320
EG13 T x 13 x 320 2.0~15.0 13 320
EG14 T x 14 x 320 2.0~15.0 14 320
EG15 T x 15 x 320 2.0~15.0 15 320
EG16 T x 16 x 320 2.0~15.0 16 320
EG17 T x 17 x 320 2.0~15.0 17 320
EG18 T x 18 x 320 2.0~15.0 18 320
EG19 T x 19 x 320 2.0~15.0 19 320
EG20 T x 20 x 320 2.0~15.0 20 320
EG22 T x 22 x 320 2.0~15.0 22 320
EG25 T x 25 x 320 2.0~15.0 25 320
EG28 T x 28 x 320 2.0~15.0 28 320
EG30 T x 30 x 320 2.0~15.0 30 320
EG32 T x 32 x 320 2.0~15.0 32 320
EG35 T x 35 x 320 2.0~15.0 35 320
EG40 T x 40 x 320 2.0~15.0 40 320
EG45 T x 45 x 320 2.0~15.0 45 320
EG50 T x 50 x 320 2.0~15.0 50 320
EG55 T x 55 x 320 2.0~15.0 55 320

Dimension and Tolerance
Dimensions and Tolerance (mm)
Length(mm) Tolerance Width(mm) Tolerance H Tolerance
<=80 +0/+1.6 <=10 +0/+0.5 <=3.0 +0/+0.3
>80~100 +0/+2.5 >10~20 +0/+0.6 >3~5 +0/+0.4
>100~150 +0/+3.0 >20~30 +0/+0.6 >5~8 +0/0.5
>150~200 +0/+4.0 >30~40 +0/+1.0 >8~10 +0/+0.8
>200~300 +0/+5.0 >50 +0/+1.5 >10 +0/+0.8
>300 +0/+6.0 ---- ---- ---- ----
Length:330 or 310 mm or cut to lenths upon requirements.

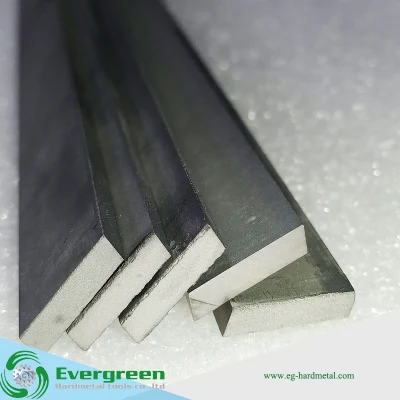

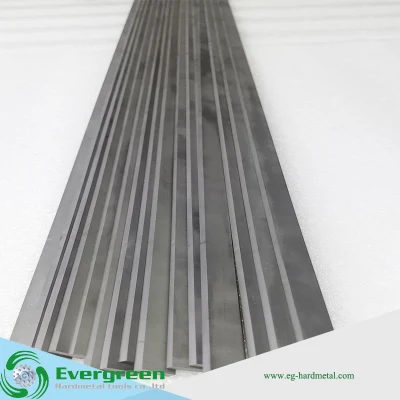

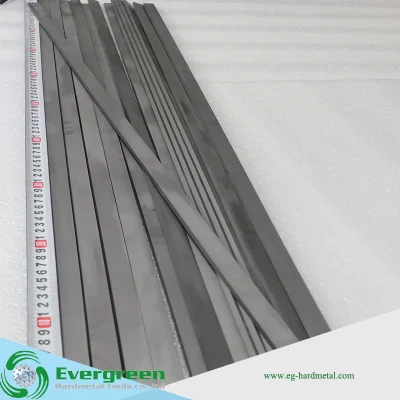

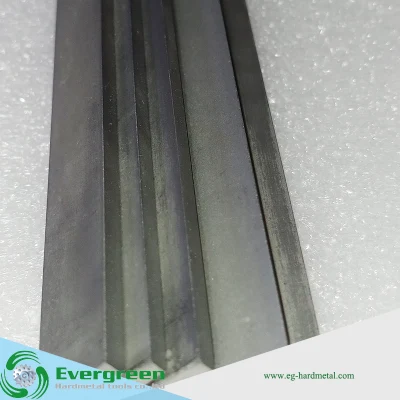

Detailed Photos
Yg8 Tungsten Carbide Strip for Making Conveyor Belt Scraper Blades
Yg8 Tungsten Carbide Strip for Making Conveyor Belt Scraper Blades
Yg8 Tungsten Carbide Strip for Making Conveyor Belt Scraper Blades Yg8 Tungsten Carbide Strip for Making Conveyor Belt Scraper Blades

Yg8 Tungsten Carbide Strip for Making Conveyor Belt Scraper Blades

Yg8 Tungsten Carbide Strip for Making Conveyor Belt Scraper Blades


About us
Zhuzhou Evergreen hardmetal Tools Co., Ltd., is a professional manufactuer of cemented carbide products in China, we have been in this line for more than 25 years. The tools made from us are with long life time and stable machining performance. If there is any interest please feel free to let us know, free samples are available.

Yg8 Tungsten Carbide Strip for Making Conveyor Belt Scraper Blades

After Sales Service




Yg8 Tungsten Carbide Strip for Making Conveyor Belt Scraper BladesYg8 Tungsten Carbide Strip for Making Conveyor Belt Scraper Blades
