Product Description

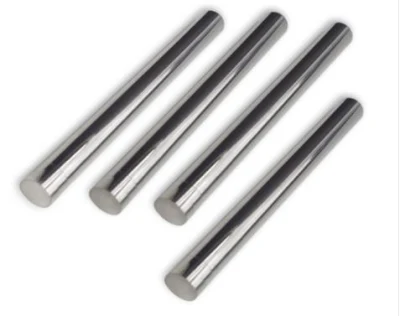

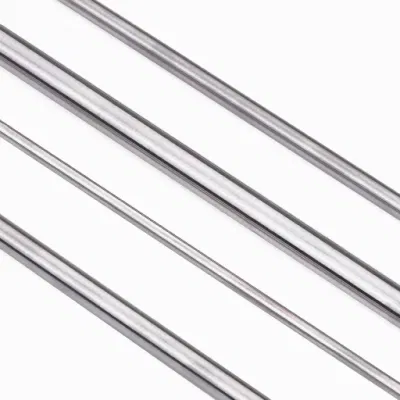

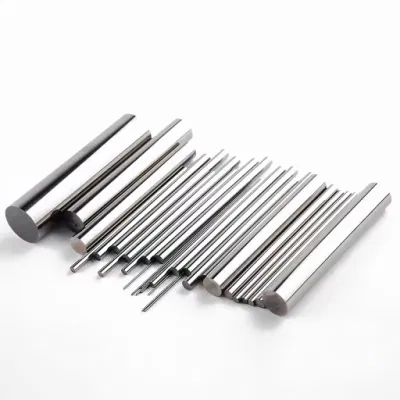

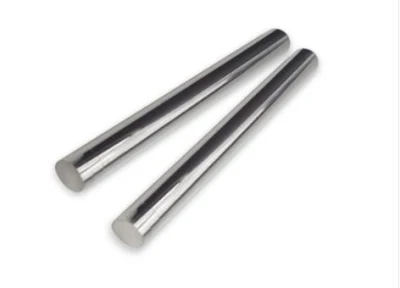

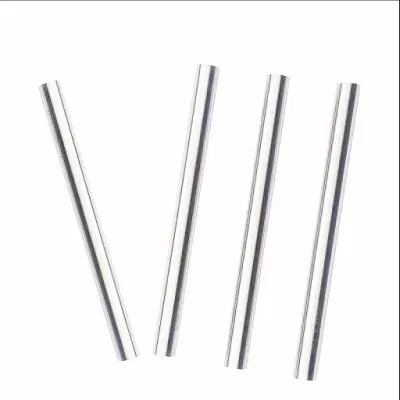

Solid cemented carbide rods are widely used for high-quality solid carbide tools such as milling cutters, end mills, drills or reamers. It can also be used for cutting, stamping and measuring tools. It is used in the paper, packaging, printing, and non-ferrous metal processing industries. Carbide rods can be used not only for cutting and drilling tools but also for input needles, various roll wore parts and structural materials. In addition, it can be used in many fields, such as machinery, chemical, petroleum, metallurgy, electronics and defense industries.
Specialized in tungsten carbide round bars, with an outstanding product line of coolant and solid carbide rod, we manufacture and stock unground and ground carbide rods for you. Our h6 polished chamfered cutting tool blanks are the most popular.
1. Type Specification: ØD×L
2. Application: for making cutting tools, for example end mills, dental burs, reamer etc.
3. Diameter: 3mm to 30mm
4. Length: standard 330mm/310mm or customized
5. Surface: blank or ground
6. Material: WC+CO
We provide high quality tungsten carbide rods with the following advantages:
1. 100% Virgin raw material
2. Sintered in HIP Furnace
3. With production experience over 10 years. We can provide professional suggestion on products.
4. Standard length is 100mm and 330mm,also can be supplied according to customers' request.
5. Competitive price ,fast delivery and on-time shipment.
| EG GRADE | ISO CODE | GRAIN SIZE(μm) | DENSITY(G/cm³) | HARDNESS | TRS(N/MM) |
| EG06 | K05 | 0.5 | 14.8 | 94.3 | 3800 |
| EG08 | K10 | 0.6 | 14.75 | 92.2 | 3900 |
| YL10.2 | K20 | 0.6 | 14.5 | 91.8 | 4000 |
| EG12 | K30 | 0.5 | 14.1 | 92.5 | 4000 |
| YG15X | K40 | 0.6 | 14.0 | 89.5 | 4000 |
M ain used for making varioius drill bits, automobile special cutter, printed circuit board, special cutters, engine special cutters, horologe, processing special cutters, integral vertical milling cutter, graver and etc.
Besides, they can be used for making of cemented carbide stamping head,core bar & perforation tools.
Dimension and Tolerance
| Dimension(mm) | Tolerance of diameter(mm) | Tolerance of length(mm) |
| Min BL-Φ3.0×330 | +0.20/+0.45 | -0/+5.0 |
Max BL-Φ50.0×330 | +0.20/+0.45 | -0/+5.0 |
We always follow the high quality standard for production, from the material preparing to final product ready, all product will go through 3 inspections before we send them to you. Our professional teams will take care of your product and ensure the good and stable quality for all batches.
Q1 : Are you Factory or trading company ?
We are Factory with over 20 years of production experience.
Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province, where is the basement of tungsten carbide .
Q3: Is the price Competitive?
Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.
Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
