Cemented Tungsten Carbide Spare Parts Sleeves for Pulser Mwd/Lwd Downhole Tools

Cemented Tungsten Carbide Spare Parts Sleeves for Pulser Mwd/Lwd Downhole Tools. We are a trusted factory providing durable and high-quality sleeves for downhole tools.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Zonco-11212
Service
OEM/OEM
Transport Package
Carton or Wooden Case.
Specification
Customized
Trademark
Zonco
Origin
China
HS Code
84819000
Production Capacity
500-600PCS Per Month

Product Description

Detailed Product Description:


Measurement-while-drilling (MWD) and logging-while-drilling (LWD) use sensors to collect parameters such as the working status of the drilling tool and borehole trajectory in real time, and transmit the information to the analysis system, thereby providing real-time operation guidance for the drilling engineer.
This product is mainly used for vertical well drilling tools, pulse drilling tools, hydraulic oscillators, logging while drilling and MWD drilling tools. It has the functions of diversion, erosion resistance and mud sealing, and can indicate mud pressure and pulse signals.



Product feature:


1. Excellent abrasion resistance

2. High wear resistance

3. High fractural strength

4. High thermal conductivity

5. Small heat expansion co-efficient

Customized  Various kinds MWD componentAccording To The Specific Drawing :

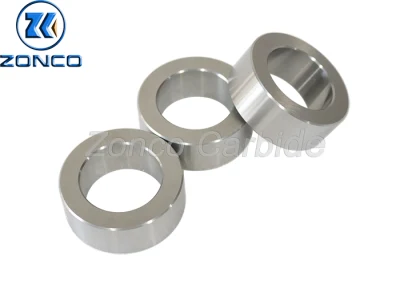

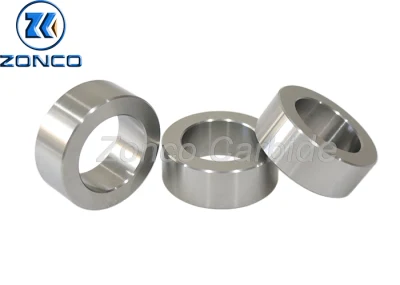

Cemented Tungsten Carbide Spare Parts Sleeves for Pulser Mwd/Lwd Downhole Tools


 Company Introduction:

       Zonco has been specialized in customizing various kinds of non-standard tungsten carbide wear resistant components for more than 10 years.Our products and technologies have been widely applied in the fields of oil & gas (such as  downhole tools(dill bits, chrismas tree, RSS, PDM), wellhead equipment, subsurface valves, MWD/LWD Tools) and chemical engineering, subsea, valve, pump, mechanical equipment. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. we are able to manufacturing all kinds of wear resistance valve parts based  on customer's drawing and material requirement, support hardfacing process based on customer's technique requirement. since most of our products are customized and not suitable to show for other customer, welcome to contact us for OEM service.


Our main products Types:
1. Carbide nozzles for Oil Drill Bits, nozzle sleeve, bushing.
2. Carbide parts for MWD/LWD tools, such as rotor,stator,liner,sleeve, plate,retainer,shroud etc.
3. Carbide Parts for downhole tools,such as torque impactor, centralizer, fracturing nozzle, stationary valve Assy and                         OSC valve Assy in Hydraulic oscillator etc.
4. Carbide Radial Bearing, such as TC bearing, PDC bearing.
5. Valve Trim, such as valve plug, stems, seats, cage, choke bean,choke stem.
6. Steel bonded tungsten carbide Assy and Surface Technology on Steels (PTA,HVOF, Boriding).
7. Other customized carbide parts based on client's drawings etc.

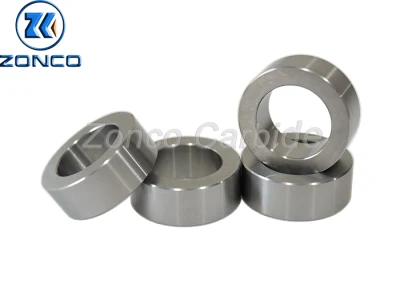

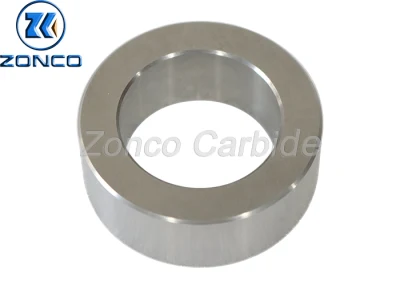

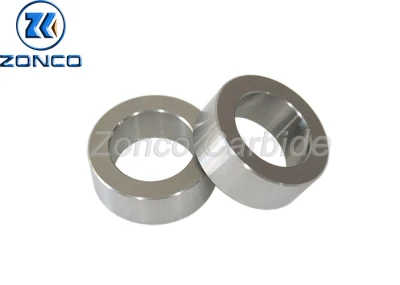

Cemented Tungsten Carbide Spare Parts Sleeves for Pulser Mwd/Lwd Downhole Tools


Our Main Advantages:
 1.  100% virgin material.
 2.  Competitive prices with 10-30% saved or more.
 3.  High quality standards and Strict products inspection.
 4.  Flexible production management with shorter lead time.
 5.  Quick and professional service and technical support.
 6.  Customized service based on customer's drawings or samples.

Zonco Common Tungsten Carbide Grades, Ghysical Mechanical Properties:
1. Cobalt Binder Grades
Grade WC% Co%   Grain size (μm)
Density (g/cm3) TRS (N/mm2) Hardness (HRA)
YG06X 94 6 14.8-15.1 2400 91.5 0.8-1.2
YG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
YG08 92 8 14.6-14.9 2700 89 1.2-1.6
YG10.2 90 10 14.3-14.6 3800 91.7 0.7
YG11 89 11 14.3-14.7 2800 88.5 1.2-1.6
YG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2
YG15 85 15 13.8-14.2 3000 86.5 1.2-1.6
YG20 80 20 13.4-13.8 3100 85 1.2-1.6

2.   Nickel Binder Grades
Grade WC% Ni% Physical and mechanical properties Grain size (μm)
Density (g/cm3) TRS (N/mm2) Hardness (HRA)
YN6 94 6 14.5-14.9 2000 90 1.2-1.6
YN9 91 9 14.3-14.6 2300 89 1.2-1.6
YN11 89 11 14.0-14.3 2600 88 1.2-1.6
Our material engineers have developed more than 15 material grades. If the listed grades above are not meet your requirement,
we are able to recommend or
develop new grade by customers' requirements.


Company profile:

      Zonco has been specialized in the tungsten carbide industry for many years. It is particularly good at customizing and processing of special-shaped non-standard carbide parts according to customers' drawings and requirement. Zonco has not only   a full set of processing equipment, but also unique processing technology as well. Zonco offers innovative solutions to meet the extreme complex and severe working conditions (high temperature, strong corrosion and wear) in energy, chemical industry and other industries.The company is dedicated to addressing production concerns to deliver productivity to customers seeking peak performance and providing products with high performance price ratio.



Cemented Tungsten Carbide Spare Parts Sleeves for Pulser Mwd/Lwd Downhole Tools
 Cemented Tungsten Carbide Spare Parts Sleeves for Pulser Mwd/Lwd Downhole Tools

 Production Equipment:

Cemented Tungsten Carbide Spare Parts Sleeves for Pulser Mwd/Lwd Downhole Tools
Cemented Tungsten Carbide Spare Parts Sleeves for Pulser Mwd/Lwd Downhole Tools


Cemented Tungsten Carbide Spare Parts Sleeves for Pulser Mwd/Lwd Downhole Tools

Cemented Tungsten Carbide Spare Parts Sleeves for Pulser Mwd/Lwd Downhole Tools
