Basic Info.
Product Name

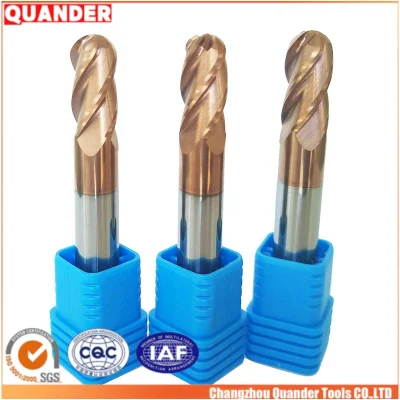

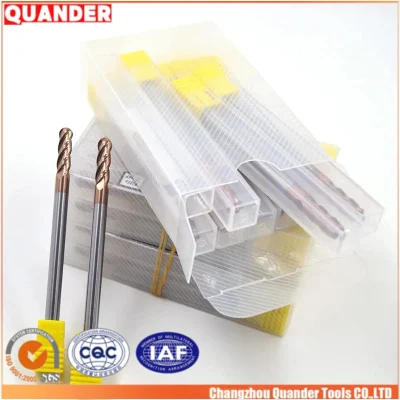

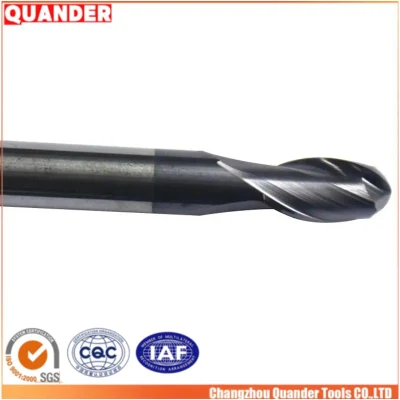

Carbide 4 Flutes Ball Nose End Mill for Aluminium
Precision
High Precision
Machine Type
CNC Milling Machine
Certification
SGS,CE
Processing Type
Metal
Controlling Mode
CNC
Model Number
HRC65
Features
High Hardness, High Speed
Flute
4
Co
9%
Suitable for
Alloy Steel, Die Steel, Mold Steel, Hardened Steel
Transport Package
Customized
Specification
Customized
Trademark
Quander Tools
Origin
Changzhou, China
Production Capacity
50000000PCS/Month
Product Description
| Specification | Diameter D1 | Blade length L1 | Shank diameter D2 | Overall length L2 |
| D3*9*50L | 3 | 9 | / | 50 |
| D3*12*75L | 3 | 12 | / | 75 |
| D3*15*100L | 3 | 15 | / | 100 |
| Dl*3*D4*50L | 1 | 3 | 4 | 50 |
| D1.5*4.5*D4*50L | 1.5 | 4.5 | 4 | 50 |
| D2*6*D4*50L | 2 | 6 | 4 | 50 |
| D2.5*7.5*D4*50L | 2.5 | 7.5 | 4 | 50 |
| D3*9*D4*50L | 3 | 9 | 4 | 50 |
| D3.5*10*D4*50L | 3.5 | 10 | 4 | 50 |
| D4*10*50L | 4 | 10 | / | 50 |
| D4*16*75L | 4 | 16 | / | 75 |
| D4*20*100L | 4 | 20 | / | 100 |
| D5*13*50L | 5 | 13 | / | 50 |
| D5*20*75L | 5 | 20 | / | 75 |
| D5*25*100L | 5 | 20 | / | 100 |
| D5*13*D6*50L | 5 | 13 | 6 | 50 |
| D6*15*50L | 6 | 15 | / | 50 |
| D6*24*75L | 6 | 24 | / | 75 |
| D6*30*100L | 6 | 30 | / | 100 |
| D8*20*60L | 8 | 20 | / | 60 |
| D8*30*75L | 8 | 30 | / | 75 |
| D8*35*100L | 8 | 35 | / | 100 |
| D10*25*75L | 10 | 35 | / | 75 |
| D10*40*100L | 10 | 10 | / | 100 |
| D12*30*75L | 12 | 30 | / | 75 |
| D12*45*100L | 12 | 45 | / | 100 |
| D14*45*100L | 14 | 45 | / | 100 |
| D16*45*100L | 16 | 45 | / | 100 |
| D18*45*100L | 18 | 45 | / | 100 |
| D20*45*100L | 20 | 45 | / | 100 |
| D6*45*150L | 6 | 45 | / | 150 |
| D8*50*150L | 8 | 50 | / | 150 |
| D10*60*150L | 10 | 60 | / | 150 |
| D10*60*151L | 10 | 60 | / | 151 |
| D14*70*150L | 14 | 70 | / | 150 |
| D16*75*150L | 16 | 75 | / | 150 |
| D18*75*150L | 18 | 75 | / | 150 |
| D20*75*150L | 20 | 75 | / | 150 |
