Customized Tungsten Carbide Strip for Industry Application

Customized Tungsten Carbide Strip for Industry Application. We are a factory specializing in manufacturing high-quality tungsten carbide strips for various industrial applications.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Surface Finishing
Polished and Unpolished
Grain Sizes Selection
Ultra Fine, Fine, Medium, Coarse
Cobalt Percentage
From 3% to 30% Based on Different Grades
Wc+Co Powder
100% Virgin Material
Transport Package
Standard Package / Customize Packing
Specification
per customer requirement
Trademark
Aseeder
Origin
China
HS Code
84819010
Production Capacity
60 Tons Per Month

Product Description

SEED is the leading manufacturer and exporter of tungsten carbide components,  Nozzles radial bearings, as well as provide machining service and hardfacing processes based in China, with a branch office set up in Houston dedicated for North American's market in sales and customer support, we are able to manufacturing all kinds of tungsten carbide parts and wear parts based on your drawing and material specification requirement for difference industry application.

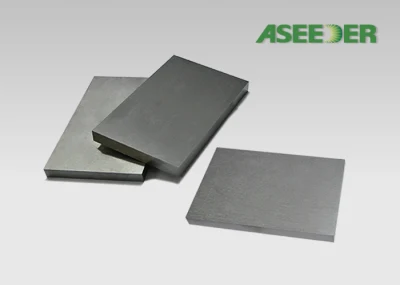

Tungsten Carbide Plate Blanks In Any Size Availble

Customized Tungsten Carbide Strip for Industry Application
Customized Tungsten Carbide Strip for Industry Application
Customized Tungsten Carbide Strip for Industry Application
Customized Tungsten Carbide Strip for Industry Application
Other complex carbide wear parts also avaialbe
Customized Tungsten Carbide Strip for Industry ApplicationCustomized Tungsten Carbide Strip for Industry Application


Tungsten Carbide Plate & Strip Features:

  1. High stability, long lifespan circle.
  2. Customized as your requirements.
  3. Approved factory for oil and natural gas industry TOP5 customers.
  4. With ASP9100 certificate , API certificate, ISO9001:2015
  5. With a Special Thread Processing Workshop

Tungsten Carbide plates Application: Main used for machining copper sheet, stainless steel, SPCC, silicon steel sheet, also used for stampling die for electronic connector, LED lead frame, Electric motor rotor.
Some size of tungsten carbide plates in K10, K20, K30, K40:
125x65xT1.5-15 mm
105x105xT6.0-70 mm
150x150xT20-70 mm
205x205xT15-45 mm
255x255xT15-35 mm
300x300xT15-30 mm
Also we many other different sizes of plates, like 50x50xT, 100x100xT, 120x120xT........, in addition, we can do customized size, simply you can find the plates from us in size width 1-300 mm x Depth 1-300 mm x Thickness 1-300 mm. For further information, please kindly contact us.


Recommend grade list of Carbide Plate & Strip:

The grades which used more frequently are YG8, YG15, YG20, YG10.2, YG2T, YG10X etc.Other grades can be offered according to customers' requirements. Afterwards the board can be broken out from the panel.

Grade ISO Grade COBALT CONTENT DENSITY HARDNESS TRS
% g/cm³ HRA N/mm²
K10T K05-K10 4.5-6.0 14.95-15.05 92.7 1800
YG8 K30 8 14.80 89.5 2200
YG6 K20 6 14.95 90.5 1900
YG6X K10 6 14.95 91.5 1800
YL10.2 K30 10 14.50 91.8 2400
YG13X K30-K40 13 14.30 89.5 2600
YG15 K40 15 14.00 87.5 2800
YL20.8 K40 15 14.00 88.5 3800


Major Product Lines

· Wear resistant carbide components via powder metallurgy technique

· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)

· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)

· Additive manufacture


Customized Tungsten Carbide Strip for Industry Application
Customized Tungsten Carbide Strip for Industry Application

Customized Tungsten Carbide Strip for Industry Application
Customized Tungsten Carbide Strip for Industry Application
Customized Tungsten Carbide Strip for Industry Application Customized Tungsten Carbide Strip for Industry Application
