Basic Info.
Model NO.
K05, K10, K15, K20, K40 etc
Customized
Customized
Material
Tungsten Carbide
Application
Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Casting Machinery
Grade
Yl10.2, Yg10X, Yg6X Customized
Hardness
>91.5 Hra
Diameter
Dia. 0.5~50mm
Usage
for Making End Mills and Drills
Transport Package
Plastic Box
Specification
H6/h6 Cemented Carbide Rod
Trademark
Evergreen or OEM
Origin
China
HS Code
8209009000
Production Capacity
5tons Per Month
Packaging & Delivery
Package Size
40.00cm * 20.00cm * 20.00cm
Package Gross Weight
1.000kg
Product Description

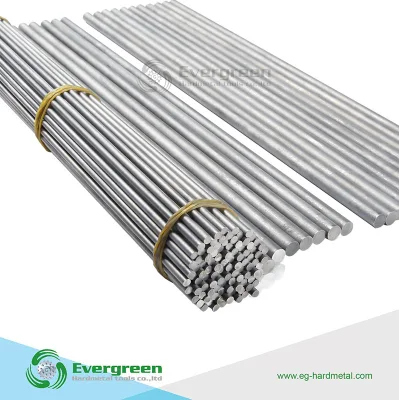

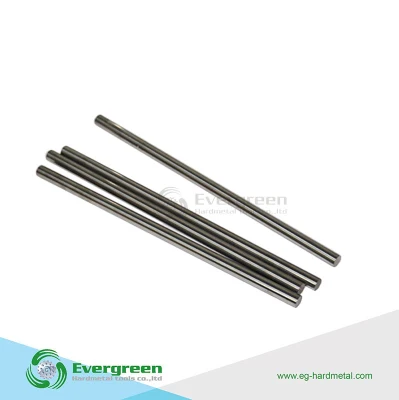

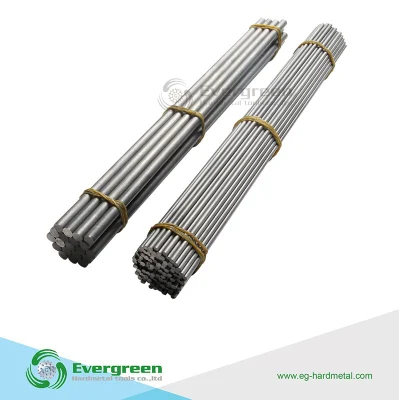

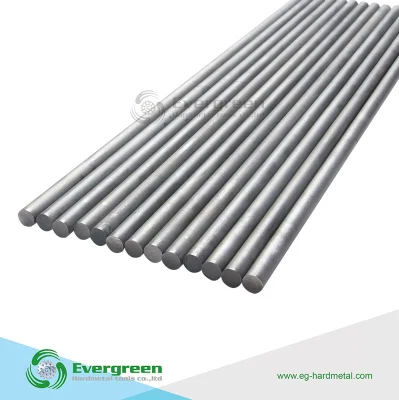

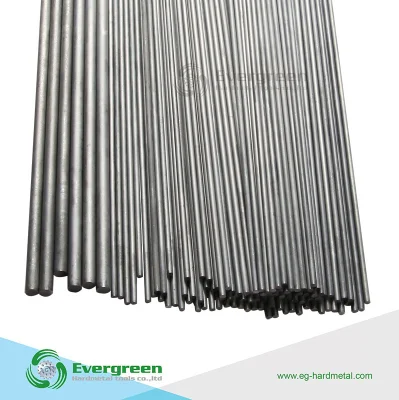

Solid cemented carbide rods are widely used for high-quality solid carbide tools such as milling cutters, end mills, drills or reamers. It can also be used for cutting, stamping and measuring tools. It is used in the paper, packaging, printing, and non-ferrous metal processing industries. Carbide rods can be used not only for cutting and drilling tools but also for input needles, various roll wore parts and structural materials. In addition, it can be used in many fields, such as machinery, chemical, petroleum, metallurgy, electronics and defense industries.
Solid cemented carbide rods are widely used for high-quality solid carbide tools such as milling cutters, end mills, drills or reamers. It can also be used for cutting, stamping and measuring tools. It is used in the paper, packaging, printing, and non-ferrous metal processing industries. Carbide rods can be used not only for cutting and drilling tools but also for input needles, various roll wore parts and structural materials. In addition, it can be used in many fields, such as machinery, chemical, petroleum, metallurgy, electronics and defense industries.Specialized in tungsten carbide round bars, with an outstanding product line of coolant and solid carbide rod, we manufacture and stock unground and ground carbide rods for you. Our h6 polished chamfered cutting tool blanks are the most popular.
We provide high quality tungsten carbide rods with the following advantages:
1. 100% Virgin raw material
2. Sintered in HIP Furnace
3. With production experience over 10 years. We can provide professional suggestion on products.
4. Standard length is 100mm and 330mm,also can be supplied according to customers' request.
5. Competitive price ,fast delivery and on-time shipment.
| EG GRADE | ISO CODE | GRAIN SIZE(μm) | DENSITY(G/cm³) | HARDNESS | TRS(N/MM) |
| EG06 | K05 | 0.5 | 14.8 | 94.3 | 3800 |
| EG08 | K10 | 0.6 | 14.75 | 92.2 | 3900 |
| YL10.2 | K20 | 0.6 | 14.5 | 91.8 | 4000 |
| EG12 | K30 | 0.5 | 14.1 | 92.5 | 4000 |
| YG15X | K40 | 0.6 | 14.0 | 89.5 | 4000 |
Dimension and Tolerance
| Dimension(mm) | Tolerance of diameter(mm) | Tolerance of length(mm) |
| Min BL-Φ3.0×330 | +0.20/+0.45 | -0/+5.0 |
Max BL-Φ50.0×330 | +0.20/+0.45 | -0/+5.0 |
