Basic Info.

Application

Hardware, Household Appliances, Commodity

Certification

ISO

Warranty

1 Year

Customized

Drawing Die Mould Material

Tungsten Carbide + Steel Case

Sintered Method

Hip Sintered

Runner

Hot Runner\ Cold Runner

Tolerance

as Per Your Requirement

OEM

Acceptable

Transport Package

Paper Carton

Trademark

Lihua

Origin

China

Production Capacity

5000 Piece Per Month

Product Description

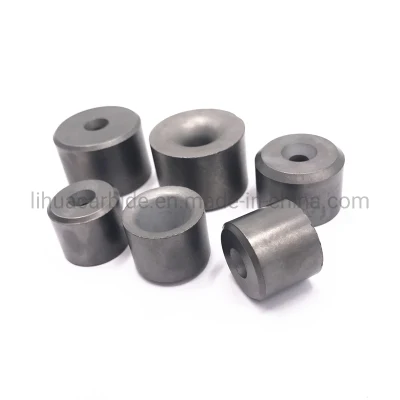

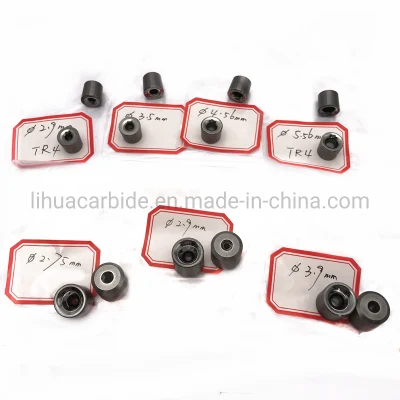

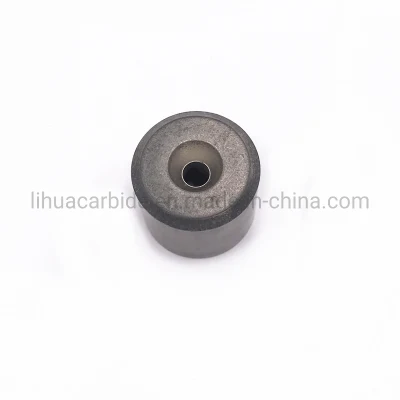

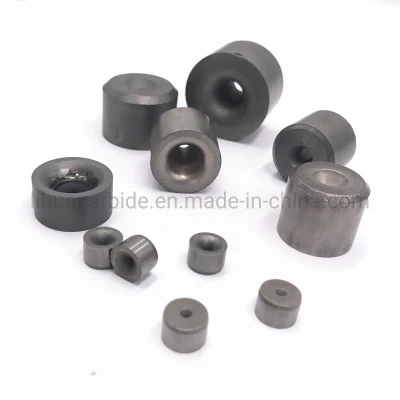

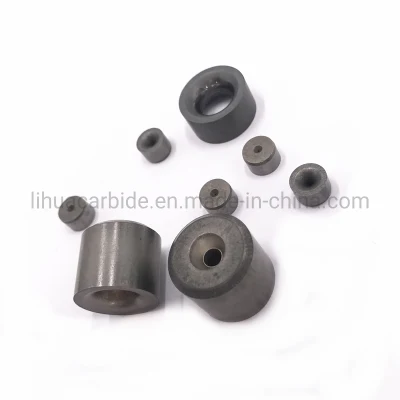

Hard Alloy Tungsten Carbide Wire Drawing Die /Mould

Applications

We Die's wire drawing system is used by wire producers to reduce a cross-section of wire by pulling the wire through a single die or a series of drawing dies. There are many applications for wire drawing, including electrical wiring, construction reinforcement, cables, medical and surgical applications, springs, staples, tire cord,and welding wire.
Hard Alloy Tungsten Carbide Wire Drawing Die /Mould

Welding Wire

Enough welding wire is produced every year to circle the globe several times. Hundreds of thousands of wire drawing dies are consumed during the production of welding wire.

Tire Cord

There are more than 1 billion tires produced every year and each tire contains bands of high tensile-strength steel wire encased in a rubber compound. Millions of wire dies are consumed each year in the production of tire cord wire.

Spring Wire

Millions of heavy duty and light vehicle engine valve, piston, fuel injection, transmission, and clutch springs are produced each year. Hundreds of thousands of wire drawing dies are consumed annually during the production of spring wire.

PC Strand

PC strand is primarily used in pre-stressed concrete buildings, bridges, parking decks, and other structures. High carbon steel rod is drawn through carbide wire dies before being used as concrete reinforcement.

Fasteners

All over the world millions of screws, bolts, nuts, rivets, nails, and staples are produced each year. Carbide wire drawing dies are essential to the production of these fasteners.

Wire Rope / Cable

Wire rope and cable are used in many industries - spanning aerospace and construction to medical and transportation. Wire drawing dies are used to form the control, constraint, and security cables used in these industries.

Specifications

No	Product	Items	Mold Core	Hardness
1	Wire-drawing Die	W103	φ13*10	1400-1600
				1600-1800
2	Wire-drawing Die	W104	φ16*13	1400-1600
				1600-1800
3	Wire-drawing Die	W105	φ20*17	1400-1600
				1600-1800
4	Wire-drawing Die	W106	φ25*18	1400-1600
				1600*1800
5	Wire-drawing Die	W107	φ30*22	1400-1600
				1600-1800
6	Wire-drawing Die	W108	φ35*25	1400-1600
				1600-1800

Items	Mold Core	Mantle	Coating Film	Specification	Tolerance	Compression Corner	Coining
W109	40*27	53(-0.1~-0.2)*34	AlCrN	13.30	0-0.01	14	25%
				13.10
W108	35*25			12.80
				12.70
				12.40
				12.10
				11.70
				11.40
				11.10
				10.70
				10.60
				10.10
W107	30*22			9.90
				9.60
				9.10
				8.90
				8.10
W106	25*18			7.10
				6.10
W105	20*11			5.10			30%
				4.90
				4.10
W104	15*10			3.80
				3.50
				3.30
				3.20
				3.10
				3.00

Pictures

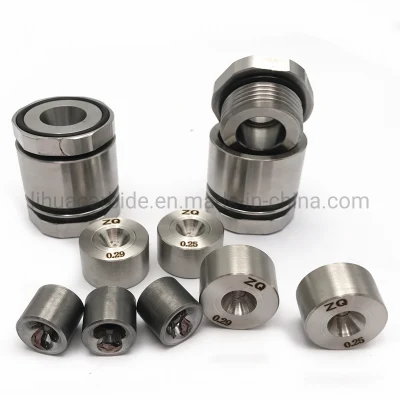

PCD Wire Drawing Dies

Hard Alloy Tungsten Carbide Wire Drawing Die /Mould

Pressure Holders

Shape Dies

Other Products

Compay Informations

About Lihua Cemented Carbide

Established in 1996, specialized in production carbide products more than 20 years and located in the hometown of tungsten carbide in China. We can manufacture all kind of tungsten carbide products.

Our products sold to worldwide . We have built a long term business relationship with the customers from Italy, Portugal, Germany, Turkey, USA, Mexico, Russia, India, Australia and so on.

Main Products

Our Main products include : Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Customized cutter: Woodworking tool cutter, V-cutter, mining tool, Any customized carbide products are acceptable.

Month capacity of 15 Tons

We have sophisticated equipment, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine etc, Our production capacity up to 15 Tons per month. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.

Strictly QC

We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
