Basic Info.
Model NO.
tungsten carbide sleeve
Wc+Co Powder
100% Virgin Material
Cobalt Percentage
From 3% to 30% Based on Different Grades
Grain Sizes Selection
Ultra Fine, Fine, Medium, Coarse
Grades
K10/K20/K30/K40/Yl10.2/Yg6/Yg6X/Yg8/Yg10X/Yl10.2
Surface Finishing
Polished and Unpolished
Main Using Purpose
Protection Parts, Wear Parts
Customized Product
Available
Transport Package
Standard Packing for Export
Specification
WC+Co Powder
Trademark
Laser mark available
Origin
Zhuzhou City, Hunan, China
Product Description
Application for tungsten carbide bearing sleeve: Widely used in water pumps,oil pumps and various other pumps, especially used for high pressure or corrosion resistance pumps, flow restrictors, servo seat.
Advantages:
* Abrasive resistant,corrosion free,good compression property, high wear-resistant bushing ,heat resistance,low maintenance;
*The hardness is 5 times of tool steel,4 times of titanium , oil resistance,separate the harmful medium;
*No shape change, high bending strength when temparature is above 1000 °C or below 500 °C,long service life , the maximum height can reach 270mm.

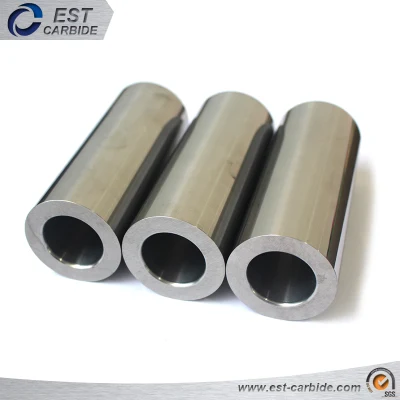

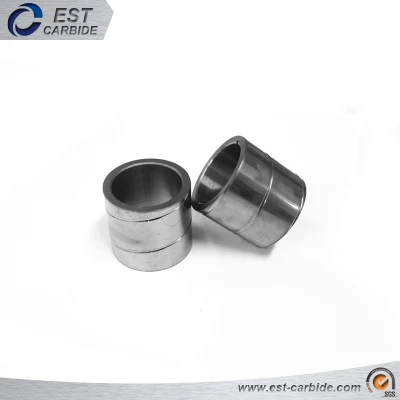

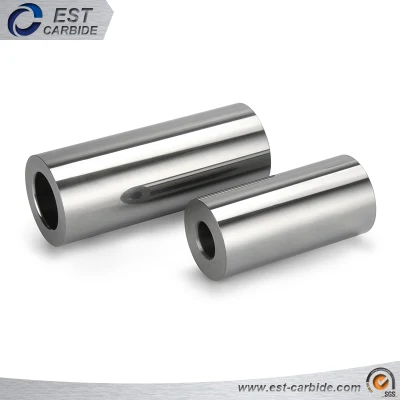

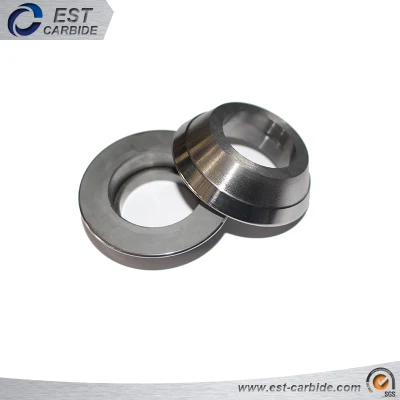

Types of tungsten carbide bearing sleeve:
We provide a wide range of tungsten carbide bushing sleeve in different dimensions, also have other shapes.
Grade list for tungsten carbide bearing sleeve:
| ISO Grade | Co% | Density(g/cm3) | Hardness | Bending Strength(N/mm2) | Compression Strength(N/mm2) | Grain Size(μm) |
| HRA (ISO3738) | ||||||
| E10S | 6 | 14.8 | 90.5 | 2900 | 5100 | 4.0 |
| E20S | 13.5 | 14.0 | 90 | 3600 | 5200 | 1.5 |
| E30 | 12 | 14.25 | 90 | 3500 | 4900 | 1.8 |
| E40 | 12.5 | 14.1 | 89.5 | 3600 | 4600 | 2.0 |
| E50 | 14.0 | 14..0 | 88.5 | 3700 | 4500 | 2.0 |
| E60 | 15 | 13.9 | 87.5 | 3500 | 4200 | <0.5 |
Quality Control System: We always follow the high quality standard for production, from the material preparing to final product ready, all product will go through 3 inspections before we send them to you. Our professional teams will take care of your product and ensure the good and stable quality for all batches.
Our regular product is tungsten carbide tips, carbide inserts, end mills,carbide saw tips,carbide mining parts, carbide rods, plates and stripes.
We also have rich experience for customized product, we make your designs become real product, which perfectly match your need. We have many successful projects on the for our clients in different countries.
