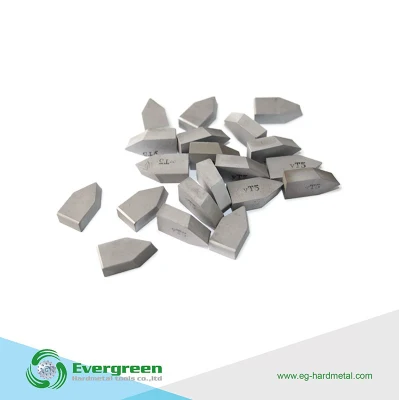

ISO Standard lathe cutting tools cemented carbide insert brazed tips for turning tools making

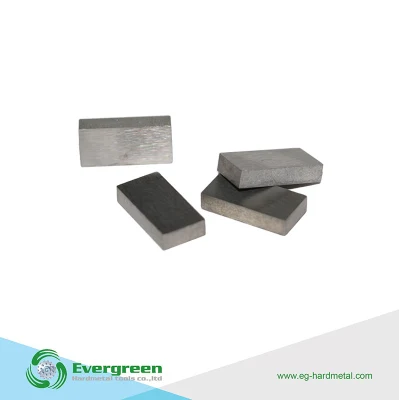

Product Description Tungsten carbide strip has high hardness and high wear resistance, it is a ideal choice to used in cutting kinds of wood.
With high quality raw material and advanced equipment, we are provides customer superior quality carbide strips.
- Easy to be brazed, good wear resistance and toughness.
- Untrafine grain size raw material to keep excellent strength and hardness.
- Both standard sizes and customizes sizes are available.
Properties Of Grade The application range of cemented carbide saw tips blade 1, cemented carbide cutting saw blade used for hardwood, recycled wood and aluminum alloy. 2, cemented carbide cutting saws for plywood, density plates and sandwich plates. 3, carbide cutting saw suitable for steel. 1. Production of 0.4 um ultrafine tungsten carbide. 2. The hardness of the product is as high as 93.5. it has good wear resistance.
3. High frequency welding of welding wire. Product Name | Carbide saw tips used for cutting HDF | Material | Co+WC 100% Virgin Raw Materials | Color | Nickel white/Black/Gray | Standard | DIN GB ISO JIS BA ANSI | Used | Brazed on the wood-working saw blade for cutting HDF | | | Features of cemented carbide saw tips blades Grade | Physical and mechanical properties | ISO Code | Applications recommended | Proposal for welding | Density g/cnV | Hardness HRA(HV) | TRS Mpa | YG6 | 14.6- 15.0 | ≥90.0 | ≥ 1800 | K20 | For the cutting of ordinary wood | use resistance welding.and the temperature should be not too high | YG8 | 14.6- 14.9 | ≥89.5 | ≥1900 | K30 | For the cutting of ordinary wood, also for aluminum | use resistance welding.and the Temperature should be not too high | YG6X | 14.7 -15.0 | ≥92 | ≥ 1800 | K10 | Applies to the cutting of the timber | recommend the high-frequency welding |
3. High frequency welding of welding wire.2. The hardness of the product is as high as 93.5. it has good wear resistance.

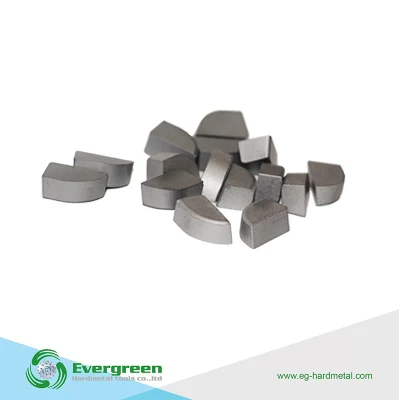

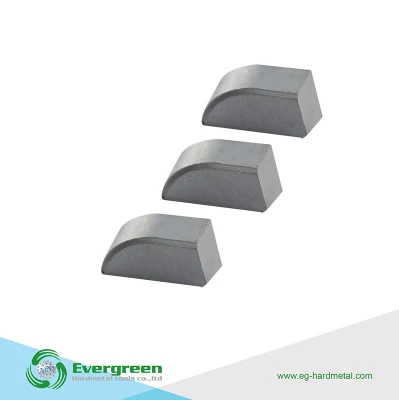

Saw tips-European style
 | LxWxT(mm) | α° | γ° | β° | | L | W | T | | 7.5 | 2.5 2.8 3.0 3.2 3.4 3.6 3.8 4.0 4.2 4.4 4.5 5.2 6.0 | 2.5 | 28 | 70 | 5 | | 7.5 | 2.8 3.2 3.5 3.7 4.5 5.0 5.6 6.0 6.5 | 2.4 | 30 | 50 | 0 | | 8.0 | 2.4 2.8 2.9 3.0 3.1 3.2 3.3 3.1 3.5 3.6 3.8 3.9 4.0 | 2.3 | 28 | 70 | 5 | | 8.0 | 4.3 4.4 4.5 4.8 5.0 5.2 5.5 6.0 6.8 8.0 | 2.5 | 28 | 70 | 5 | | 8.0 | 2.8 3.0 3.3 3.5 3.8 4.1 4.2 4.6 5.0 5.2 5.5 10.0 | 3 | 25 | 45 | 0 | | 8.5 | 2.8 3.0 3.3 3.4 3.5 3.6 3.8 4.1 4.2 4.3 4.6 5.0 6.0 | 2.5 | 28 | 70 | 5 | | 9.0 | 3.6 4.3 4.5 5.2 5.5 | 2.7 | 28 | 45 | 5 | | 9.0 | 3.1 3.3 3.5 3.6 3.8 4.3 4.5 4.7 5.2 5.5 2.8 6.0 | 2.7 | 28 | 70 | 5 | | 10.0 | 3.4 3.5 4.3 6.5 | 2.5 | 20 | 68 | 0 | | 10.0 | 3.5 3.7 3.9 4.0 4.3 4.5 4.7 5.0 5.5 6.0 | 2.8 | 28 | 70 | 5 |
Saw tips-European style | LxWxT(mm) | α° | γ° | β° | | L | W | T | | 10.0 | 6.5 7.0 7.5 10.0 | 2.8 | 28 | 70 | 5 | | 10.0 | 3.5 3.8 4.3 4.5 4.7 4.8 5.0 5.3 5.4 5.5 6 | 3 | 15 | 72 | 0 | | 10.5 | 3.0 3.5 3.8 7.0 | 2.3 | 28 | 70 | 5 | | 10.5 | 3.0 3.3 3.4 3.5 3.6 3.8 4.0 4.1 4.3 4.4 | 2.5 | 28 | 70 | 5 | | 10.5 | 4.5 4.6 5.2 5.5 6.5 | 2.5 | 28 | 70 | 5 | | 10.5 | 3.0 3.4 3.5 3.6 3.8 4.1 4.3 4.5 4.6 4.7 | 3 | 28 | 70 | 5 | | 10.5 | 4.8 5.0 5.3 5.5 5.6 6.0 6.5 7.0 7.5 14.5 | 3 | 28 | 70 | 5 | | 10.5 | 3.5 3.9 4.0 4.2 4.3 4.4 4.5 4.6 4.7 4.8 | 3.5 | 28 | 70 | 5 | | 10.5 | 5.0 5.3 5.5 5.8 6.0 6.5 7.0 8.0 8.5 9.0 10.5 | 3.5 | 28 | 70 | 5 | | 10.5 | 3.5 3.9 4.0 4.1 4.3 4.5 4.7 4.8 4.9 5.1 | 3.5 | 39 | 59 | 5 | | 10.5 | 5.5 6.5 6.5 7.0 9.0 | 3.5 | 39 | 59 | 5 | | 10.5 | 4.1 4.8 5.0 5.5 6.0 6.5 7.5 8.5 9.5 11.0 | 3.5 | 30 | 75 | 0 | | 12.0 | 4.5 4.6 4.7 5.1 5.5 5.8 6.0 6.3 6.5 7.0 | 3.5 | 30 | 45 | 10 | | 12.0 | 8.0 8.5 10 12.5 17.0 | 3.5 | 30 | 45 | 10 |
Saw tips-European style | LxWxT(mm) | α° | γ° | β° | | L | W | T | | 12.5 | 4.0 4.5 4.8 5.0 5.4 5.5 5.9 6.2 6.3 6.5 7.0 7.5 10.1 | 3.0 | 28 | 70 | 5 | | 12.5 | 4.8 5.2 5.3 5.4 6.0 6.3 6.5 6.8 7.0 7.5 | 3.5 | 28 | 70 | 5 | | 12.5 | 4.5 5.0 5.5 6.0 6.3 6.5 6.8 7.0 7.5 8.0 9.5 12.5 | 4.0 | 30 | 70 | 5 | | 13.0 | 4.0 4.3 4.5 5.0 5.2 5.5 5.8 6.0 6.3 6.5 | 4.0 | 30 | 45 | 5 | | 13.0 | 7.0 7.5 8.0 8.2 8.5 9.0 10.0 11.0 13.0 | 4.0 | 30 | 45 | 5 | | 13.0 | 4.4 4.8 4.9 5.2 5.4 5.7 5.8 6.0 6.3 6.5 | 4.0 | 30 | 60 | 5 | | 13.0 | 6.7 7.0 7.5 8.5 10.0 | 4.0 | 30 | 60 | 5 | | 13.0 | 4.0 4.5 4.8 4.9 5.0 5.3 5.5 6.0 6.5 6.8 | 4.0 | 40 | 60 | 3 | | 13.0 | 7.0 7.5 8.0 8.5 10.0 | 4.0 | 40 | 60 | 3 | | 13.0 | 5.0 6.0 7.0 8.0 9.0 10.0 12.0 | 5.0 | 35 | 45 | 0 | | 14.5 | 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0 | 4.0 | 30 | 70 | 0 | | 14.5 | 10.0 11.0 12.0 12.2 13.0 14.0 14.2 15.0 16.0 | 4.0 | 30 | 70 | 0 | | 14.5 | 16.2 17.0 18.0 19.0 20.0 | 4.0 | 30 | 70 | 0 | | 15.5 | 8.0 9.5 12.0 13.0 | 5.0 | 30 | 0 | 0 |
Saw tips U.S-Canadian style | Code | (inch) | | L | W | T | | CWB 7050-CWB 7500 | 0.281 | .050-.500 | 0.78 | | CWD 7050-CWD 7500 | 0.312 | .050-.500 | 0.093 | | CWE 7050-CWE 7500 | 0.375 | .050-.500 | 0.093 | | CWF 7050-CWF 7800 | 0.5 | .050-.800 | 0.125 | | CWG 7050-CWG 7800 | 0.375 | .050-.800 | 0.125 | | CWH 7050-CWH 7800 | 0.344 | .050-.800 | 0.125 | | Code | (inch) | | L | W | T | | WA 7050-WA 7500 | 0.250 | .050-.500 | 0.062 | | WB 7050-WB 7500 | 0.281 | .050-.500 | 0.078 | | WC 7050-WC 7500 | 0.281 | .050-.500 | 0.093 | | WD 7050-WD 7800 | 0.312 | .050-.800 | 0.093 | | WE 7050-WE 7800 | 0.375 | .050-.800 | 0.093 | | WF 7050-WF 7800 | 0.500 | .050-.800 | 0.125 | | WG 7050-WG 7800 | 0.375 | .050-.800 | 0.125 | | WH 7050-WH 7800 | 0.344 | .050-.800 | 0.125 | | WQ 7050-WQ 7800 | 0.375 | .050-.800 | 0.156 | | Code | (inch) | | L | W | T | | WA 8050-WA8500 | 0.250 | .050-.500 | 0.062 | | WB 8050-WB8500 | 0.281 | .050-.500 | 0.078 | | WC 8050-WC8500 | 0.281 | .050-.500 | 0.093 | | WD 8050-WD8800 | 0.312 | .050-.800 | 0.093 | | WE 8050-WE8800 | 0.375 | .050-.800 | 0.093 | | WF 8050-WF8800 | 0.500 | .050-.800 | 0.125 | | WG 8050-WG8800 | 0.375 | .050-.800 | 0.125 | | WH 8050-WH8800 | 0.344 | .050-.800 | 0.125 | | WQ 8050-WQ8800 | 0.375 | .050-.800 | 0.156 | | Code | (inch) | | L | W | T | | CWD-R/T7050-7500 | 0.312 | .050-.500 | 0.093 | | CWE-R/T7050-7500 | 0.375 | .050-.500 | 0.093 | | CWF-R/T7050-7500 | 0.500 | .050-.500 | 0.125 | | CWG-R/T7050-7500 | 0.375 | .230-.270 | 0.125 | Products Showcase
Usage Purpose
Facility Showcase
 | | | |
| | | | |
machining performance. If there is any interest please feel free to let us know, free samples are available.
