8-30mm Thickness PDC Drill Bits Tungsten Carbide Nozzle for Petroleum Industry Polished with Customized Design

Get high-quality 8-30mm Thickness PDC Drill Bits with Tungsten Carbide Nozzle for the Petroleum Industry, polished with a customized design. We are a factory specializing in manufacturing advanced drilling equipment.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Zonco -10059
OEM
Available
Surface Treatment
Polishing, Sand Blast
Transport Package
Carton or Wooden Case. Also Can Be Customized as P
Specification
Customization
Trademark
ZONCO
Origin
China Zhuzhou
HS Code
84819000
Production Capacity
800-1000PCS Per Month

Product Description

Product Description

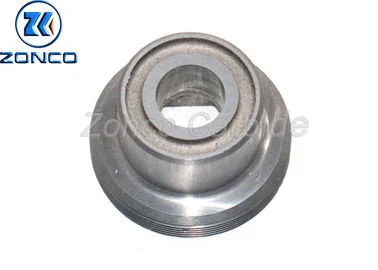

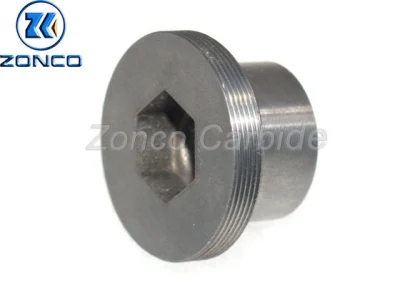

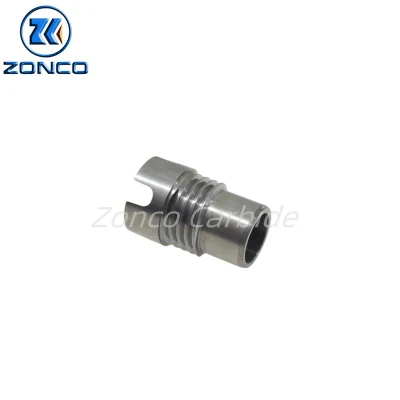

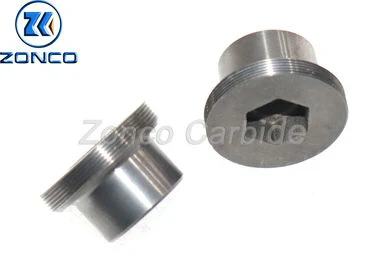

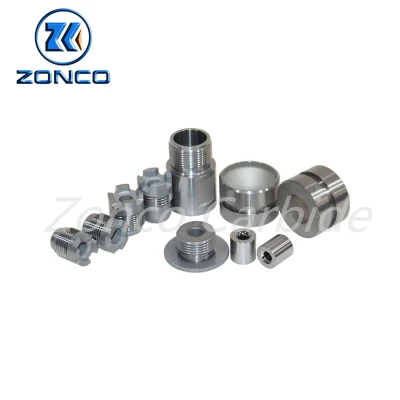

8-30mm Thickness PDC Drill Bits Tungsten carbide Nozzle for Petroleum Industry Polished with customized design



Product Name



Tungsten Cemented Carbide Sandblasting Nozzles For Oil Drilling

Brand Zonco
Material 100% Virgin Steel/Tungsten carbide
Usage Drill bit
MOQ 1 Piece



Zonco Cemented tungsten carbide spary nozzle of oil field drill bit parts have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application

Grade WC% Co/Ni % Physical and mechanical properties Grain size (μm) Recommended application
Density (g/cm3) TRS (N/mm2) Hardness (HRA)
ZG01 100 0 15.3-15.5 1200 95.5 0.3 Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X 96 4 15.0-15.2 1600 92.8 0.8-1.0 Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06 94 6 14.8-15.1 2500 90.0 1.2 Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X 94 6 14.8-15.1 2400 91.5 1.0 Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
ZG08 92 8 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2 90 10 14.3-14.6 3800 91.7 0.7 Good general performance, suitable for casing and oil nozzle products
ZG11 89 11 14.3-14.7 2800 88.5 1.2-1.6 Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2 Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15 85 15 13.8-14.2 3000 86.5 1.2-1.6
ZG15X 85 15 13.8-14.2 4500 89.0 0.7 Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20 80 20 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
ZN06 94 6 14.5-14.9 2000 90.0 1.2 Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09 91 9 14.3-14.6 2300 89.0 1.2-1.6
ZN11 89 11 14.0-14.3 2600 88.0 1.2

Advantages:

Advanced process design

Specialized in production

Unique material properties

Personalized customization

Whole process quality control system

Strong supply ability guaranteed
