OEM Wellhead Tree Components Wellhead Valve Trim Tungsten Carbide Yg6 Yg8 K10 K20 Bk6 Bk8

OEM Wellhead Tree Components with Tungsten Carbide Yg6,Yg8,K10,K20,Bk6,Bk8 Valve Trim. Factory direct, high quality, durable products for wellhead systems.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Zonco-11136
Service
OEM
Transport Package
Carton or Wooden Case.
Specification
Customized
Trademark
Zonco
Origin
China
HS Code
84819000
Production Capacity
1000PCS Per Month

Product Description

OEM Wellhead Tree Components Wellhead Valve Trim Tungsten Carbide YG6 YG8 K10 K20 BK6 BK8

Introudction:
Zonco has been specialized in manufacturing cemented tungsten carbide parts by offering drawings-based customization as request,we have rich experiences in varied customized tungsten carbide & stainless steel parts which has good performance to abrasion,erosion and corrosion.

Welcome to contact us for more details if you have demand for hard alloy parts applied in oil&gas wellhead&downhole,mining, chemical industry, coal chemical industry, pump valve, solar energy, nuclear energy, military industry, machinery,etc.

Description:
Carbide Valve Trim has a series of excellent properties such as high hardness, wear resistance, good strength and toughness, heat resistance and corrosion resistance, especially its high hardness and wear resistance, which remain basically unchanged even at a temperature of 500 ° C , Still high hardness at 1000 ºC.Valve Trim including valve plug, stems, seats, cage, choke bean,choke stem,etc.

Carbide is a hard metal we recommend using for valve trim during flowback. In an ASTM G65 test of material loss, Carbide trim performed 2.5x better than standard D2 Steel trim

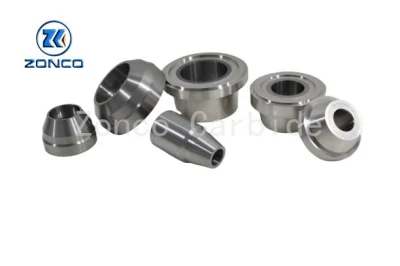

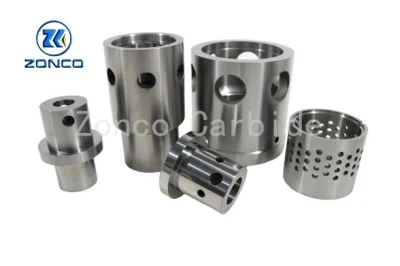

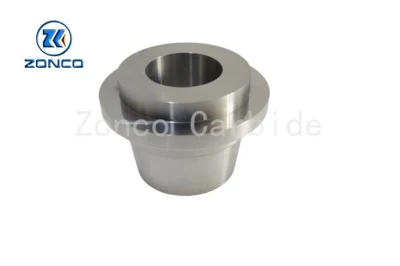

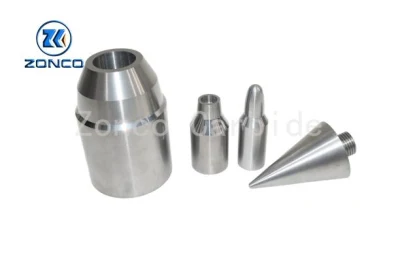

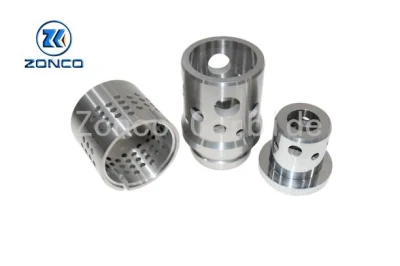

Customized Valve Trim (Valve Stem,plug,cage and seats)
OEM Wellhead Tree Components Wellhead Valve Trim Tungsten Carbide Yg6 Yg8 K10 K20 Bk6 Bk8OEM Wellhead Tree Components Wellhead Valve Trim Tungsten Carbide Yg6 Yg8 K10 K20 Bk6 Bk8OEM Wellhead Tree Components Wellhead Valve Trim Tungsten Carbide Yg6 Yg8 K10 K20 Bk6 Bk8OEM Wellhead Tree Components Wellhead Valve Trim Tungsten Carbide Yg6 Yg8 K10 K20 Bk6 Bk8OEM Wellhead Tree Components Wellhead Valve Trim Tungsten Carbide Yg6 Yg8 K10 K20 Bk6 Bk8

International Quality Certification ISO9001 of Cemented Tungsten Carbide
OEM Wellhead Tree Components Wellhead Valve Trim Tungsten Carbide Yg6 Yg8 K10 K20 Bk6 Bk8

Main Products lines
1.Radial Thrust Bearing & PDC,TC Bearing

2.Tungsten Carbide Nozzles and Teeth
3.Valve Trim (Valve Stem/plug and seats)
4.MWD & LWD Carbide Parts
5.Carbide Parts for Downhole Tools
6.Carbide Wear Parts for Mechanical Equipments
7.Other Carbide Wear Parts used in extreme complex and severe working conditions (high temperature, strong corrosion and wear)

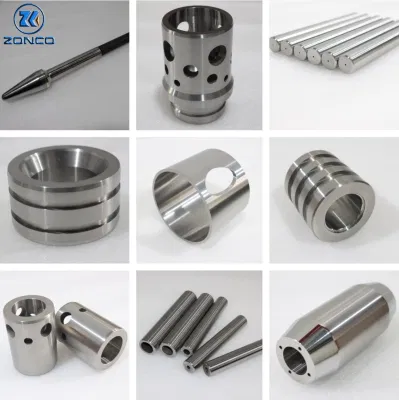

OEM Tungsten Carbide & Stainless Steel Parts:
OEM Wellhead Tree Components Wellhead Valve Trim Tungsten Carbide Yg6 Yg8 K10 K20 Bk6 Bk8

Tungsten Carbide Grades(Properties and Application)


Grade

WC%

Co/Ni%
Physical and mechanical properties
Grain size
 μm



    Recommended application

Density
g/cm3

TRS
N/mm2

Hardness
HRA
ZG01 100 0     Co 15.3-15.5 1200 95.5 0.3 Ultra high hardness, high wear resistance, corrosion resistance, with certain damage resistance
ZG04X 96 4     Co 15.0-15.2 1600 92.8 0.8-1.0 Suitable for wire drawing die, non-ferrous metal wire tensile wear-resisting parts
ZG06 94 6     Co 14.8-15.1 2500 90.0 1.2
Good wear resistance, good compression resistance, suitable for wear resistance and high pressure resistance parts, good thermal rigidity
ZG06X 94 6     Co 14.8-15.1 2400 91.5 1.0
ZG06A 94 6     Co 14.8-15.1 2150 92.5 0.6-0.8
ZG08 92 8     Co 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for usual wear - resistant parts, molds, general tools, etc
ZG10.2 90 10   Co 14.3-14.6 3800 91.8 0.7 Sub-fine tungsten carbide particles, good general performance
ZG10X 90 10   Co 14.3-14.6 4000 92.2 0.6 Ultra fine tungsten carbide particles, excellent heat resistance

ZG11

89

11   Co

14.3-14.7

2800

88.5

1.2-1.6
Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X 88 12   Co 14.2-14.5 3000 89.5 1.0-1.2
Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15 85 15   Co 13.8-14.2 3000 86.5 1.2-1.6

ZG15X

85

15   Co

13.8-14.2

4500

89.0

0.7
Sub-fine tungsten carbide particles, with good wear resistance and excellent toughness, which is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20 80 20   Co 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
ZN06 94 6      Ni 14.5-14.9 2000 90.0 1.2
Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09 91 9      Ni 14.3-14.6 2300 89.0 1.2-1.6
ZN11 89 11     Ni 14.0-14.3 2600 88.0 1.2


Why choose us:
1. Experienced with new producing technology and facilities of surface treatment to improve hardness,corrosion resistance
erosion resistance with lower cost.

2. Customized service is available according to client's drawings or requirements.
3. Production lines entirely accord with International Quality Certification of ISO9001.
4. Factory direct sale with 20-30% price off.
5. More flexible production management with faster lead time.


What is surface treatment and its advantages?
Surface treatment is an additional process apply cemented carbide to the surface of a material for the purpose of adding functions such as erosion resistance,corrosion resistance and wear resistance or improving the hardness,by which lower the cost compared to the cost of using entire cemented alloy,and remain the alloy good performance upon the material.

Surface treatments can be broadly classified into removal processes, such as scraping or melting the surface, and additive processes, such as painting,coating which add cemented carbide to the surface.there are four technical surface treatments we have in image below as additive processes to highly improve property of wear resistance and erosion resistance.


OEM Wellhead Tree Components Wellhead Valve Trim Tungsten Carbide Yg6 Yg8 K10 K20 Bk6 Bk8
Production Plant/Factory
Address: Building A3, Minor Enterprises Promotion Park, Huanhe Road(N), Tianyuan District, Zhuzhou, Hunan, China

Welcom to visit our factory in Zhuzhou,China! and please feel free to contact me if you're looking for high quality supplier of cemented tungsten carbide parts and materials.

OEM Wellhead Tree Components Wellhead Valve Trim Tungsten Carbide Yg6 Yg8 K10 K20 Bk6 Bk8
The department of raw virgin preparation and compression
OEM Wellhead Tree Components Wellhead Valve Trim Tungsten Carbide Yg6 Yg8 K10 K20 Bk6 Bk8
The department of HIP sintering
OEM Wellhead Tree Components Wellhead Valve Trim Tungsten Carbide Yg6 Yg8 K10 K20 Bk6 Bk8
The factory's interior

OEM Wellhead Tree Components Wellhead Valve Trim Tungsten Carbide Yg6 Yg8 K10 K20 Bk6 Bk8
Technological process of cemented carbide
OEM Wellhead Tree Components Wellhead Valve Trim Tungsten Carbide Yg6 Yg8 K10 K20 Bk6 Bk8
Corporation Main Gate

OEM Wellhead Tree Components Wellhead Valve Trim Tungsten Carbide Yg6 Yg8 K10 K20 Bk6 Bk8


Conference/Meeting room
OEM Wellhead Tree Components Wellhead Valve Trim Tungsten Carbide Yg6 Yg8 K10 K20 Bk6 Bk8

Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
