Solid Tungsten Carbide Rods for Endmillg Unground Cut-to-Length Endmill Cutter Drilling Bits Reamer Burr Taps Milling

Discover our top-quality Solid Tungsten Carbide Rods for Endmills, Cut-to-Length Endmill Cutters, Drilling Bits, Reamers, Burrs, and Taps. We are a reliable factory providing high-performance cutting tools.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Our Advantages
  • Product Parameters
  • Detailed Photos
  • Packaging & Shipping
Overview

Basic Info.

Model NO.
YG6X YL10.2 YG15X YG10.2 H6/H6
Certification
ISO9001
Standard
DIN
Customized
Customized
Material
Tungsten Carbide
Application
Metal Cutting Machine, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Casting Machinery
Grade
Yl10.2, Yg10X, Yg6X Customized
Hardness
>91.5 Hra
Diameter
Dia. 0.5~50mm
Usage
for Making End Mills and Drills
Transport Package
Plastic Box
Specification
H6/h6 Cemented Carbide Rod
Trademark
Evergreen or OEM
Origin
China
HS Code
8209009000
Production Capacity
5tons Per Month

Packaging & Delivery

Package Size
40.00cm * 20.00cm * 15.00cm
Package Gross Weight
1.000kg

Product Description



Product Description

Solid Tungsten Carbide Rods for Endmillg Unground Cut-to-Length Endmill Cutter Drilling Bits Reamer Burr Taps Milling
Solid cemented carbide rods are widely used for high-quality solid carbide tools such as milling cutters, end mills, drills or reamers. It can also be used for cutting, stamping and measuring tools. It is used in the paper, packaging, printing, and non-ferrous metal processing industries. Carbide rods can be used not only for cutting and drilling tools but also for input needles, various roll wore parts and structural materials. In addition, it can be used in many fields, such as machinery, chemical, petroleum, metallurgy, electronics and defense industries.

Specialized in tungsten carbide round bars, with an outstanding product line of coolant and solid carbide rod, we manufacture and stock unground and ground carbide rods for you. Our h6 polished chamfered cutting tool blanks are the most popular.

Solid Tungsten Carbide Rods for Endmillg Unground Cut-to-Length Endmill Cutter Drilling Bits Reamer Burr Taps Milling

Our Advantages

Industrial Cutting Tool Services

There are as many different types of cutting tools as there are products to cut. However, while the process of each different type is basically the same, each type of tool requires a different machine to service it properly. we have the equipment, people and knowledge to service a variety of cutting tools.


We provide high quality tungsten carbide rods with the following advantages:

1. 100% Virgin raw material
2. Sintered in HIP Furnace
3. With production experience over 10 years. We can provide professional suggestion on products.
4.  Standard length is 100mm and 330mm,also can be supplied  according to customers' request.
5. Competitive price ,fast delivery and on-time shipment.


Solid Tungsten Carbide Rods for Endmillg Unground Cut-to-Length Endmill Cutter Drilling Bits Reamer Burr Taps Milling

Product Parameters
EG GRADE ISO CODE GRAIN SIZE(μm) DENSITY(G/cm³) HARDNESS TRS(N/MM)
EG06 K05 0.5 14.8 94.3 3800
EG08 K10 0.6 14.75 92.2 3900
YL10.2 K20 0.6 14.5 91.8 4000
EG12 K30 0.5 14.1 92.5 4000
YG15X K40 0.6 14.0 89.5 4000

Dimension and Tolerance
Dimension(mm) Tolerance of diameter(mm) Tolerance of length(mm)
Min BL-Φ3.0×330 +0.20/+0.45 -0/+5.0

Max BL-Φ50.0×330
+0.20/+0.45 -0/+5.0

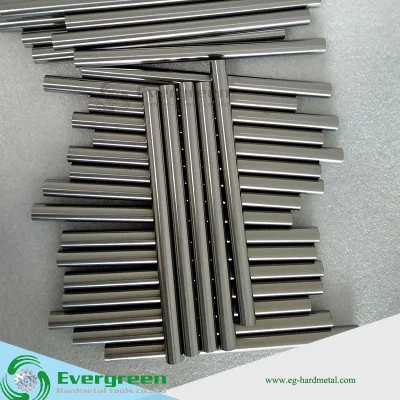

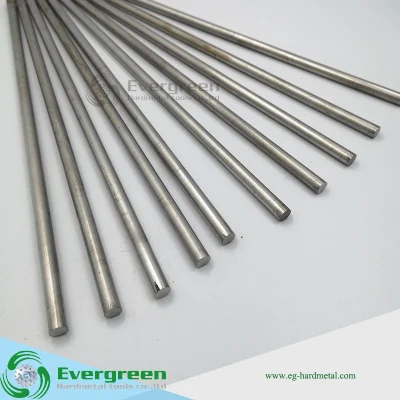

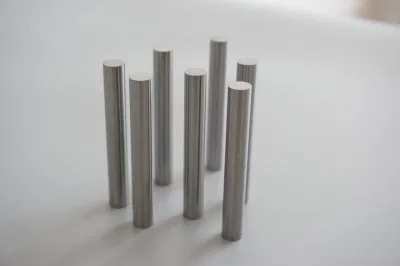

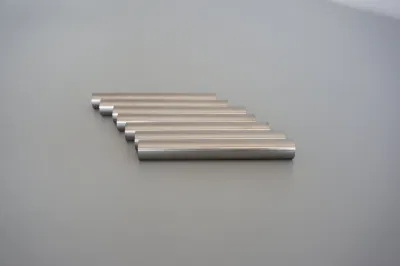

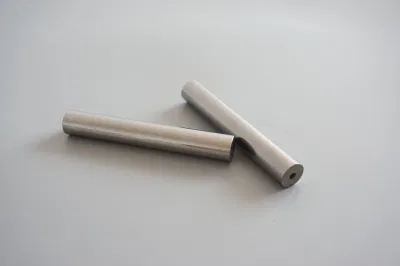

Detailed Photos
Solid Tungsten Carbide Rods for Endmillg Unground Cut-to-Length Endmill Cutter Drilling Bits Reamer Burr Taps Milling
Solid Tungsten Carbide Rods for Endmillg Unground Cut-to-Length Endmill Cutter Drilling Bits Reamer Burr Taps Milling
Solid Tungsten Carbide Rods for Endmillg Unground Cut-to-Length Endmill Cutter Drilling Bits Reamer Burr Taps Milling
Solid Tungsten Carbide Rods for Endmillg Unground Cut-to-Length Endmill Cutter Drilling Bits Reamer Burr Taps Milling

Solid Tungsten Carbide Rods for Endmillg Unground Cut-to-Length Endmill Cutter Drilling Bits Reamer Burr Taps MillingSolid Tungsten Carbide Rods for Endmillg Unground Cut-to-Length Endmill Cutter Drilling Bits Reamer Burr Taps Milling

Packaging & Shipping

Solid Tungsten Carbide Rods for Endmillg Unground Cut-to-Length Endmill Cutter Drilling Bits Reamer Burr Taps Milling

Q1 : Are you Factory or trading company ?



A1:We are Factory with over 20 years of production experience.



Q2: Where is your factory located ?



A2:We are located in Zhuzhou city, Hunan province, where is the basement of  tungsten carbide .



Q3: Is the price Competitive?



A3:Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.



Q4: Are the products High Quality?



A4:Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
