Basic Info.
Model NO.
B, N, H, P
Lead Time
5-7 Working Days
Transport Package
Standard Export Packing
Specification
B, N, H, P
Trademark
AU-PROSPECT
Origin
China
HS Code
843143
Production Capacity
500000
Product Description
Relevant description of products:
Retrieve the inner tube with an overshot without lifting out the whole rods string to obtain the core, the wireline coring system lifts the underground core sample out of the borehole through the overshot to take back the entire inner tube and conduct sampling analysis. This improves productivity of the work site and guarantees safety of core sample during drilling down.
The system is realized through a fully independent inner tube. During its working, the inner tube does not connect with the overshot but locates at the bottom of the coring drilling rod directly (behind the coring drilling bit). An assembly device is installed on top of the inner tube, which includes coring and recycling functions. When the inner tube is full of core sample, the overshot is placed to the bottom from the borehole through a steel wire rope and lifted out by a winch. After the inner tube assembly is lifted to the surface, an empty inner tube is placed to the bottom of the hole to recover the drilling. This improves well drilling efficiency.
Our company provides core barrel assmeblies of different diameters to meet customers' demands. The wireline coring system is applicable for most drilling conditions and standard DCDMA hole sizes (B, N, H and P).
Currently, the company provides two models of wireline coring systems: double-tube and triple-tube
Core barrel assembly: It consists of inner tube and outer tube groups.

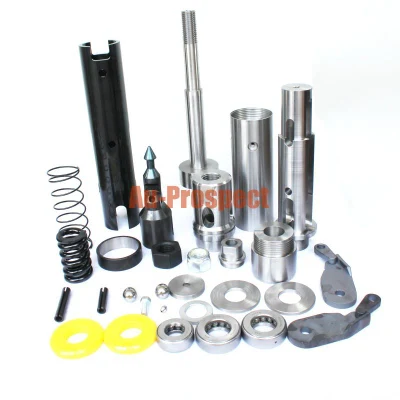

The inner part consists of the following parts: spearhead assemly, retrival components, core sample collection component, landing shoulder, stop ring and other parts.inner tube group, independent from outer tube group, collects core sample sample during well drilling.
The outer tube part consists of parts , which includes locking coupling, adapter coupling, outer tube, etc. The outer tube group that is kept at the bottom of the hole all the time holds the inner tube assembly during drilling.
The triple tube coring system AU3 has the same components as the dual-tube. And its interior has a third tube that is known as liner tube of the inner tube.
Liner tube of the inner tube is placed in the inner tube. The triple tube system can realize overall recovery ratio of core sample when drilling stratum with coal, clay or bigger crack. The liner tube or split tube keeps the core sample at its receiving status to collect or load and store easily.
Only N, H and P sizes are available for the triple tube coring system.

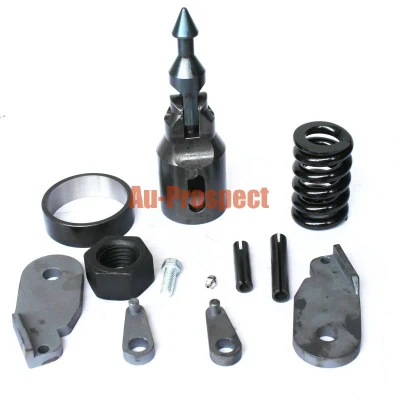

1 Spearhead Point
2 Detent Plunger
3 Compression Spring

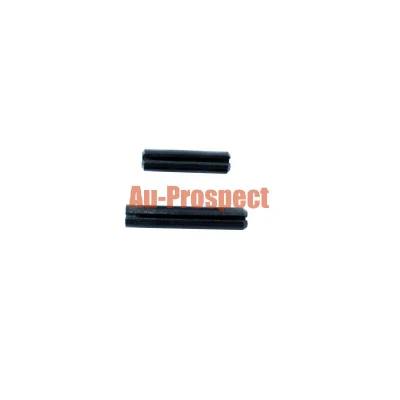

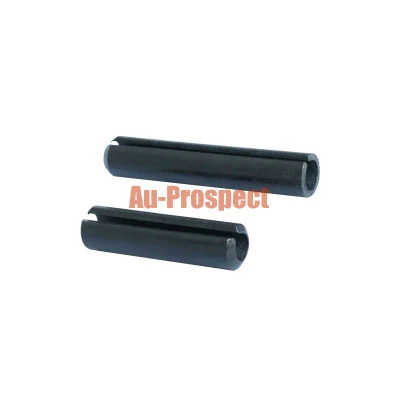

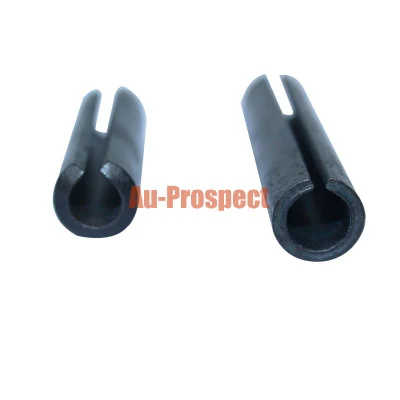

4 Spirol Pin
5 Spearhead Base
6 Latch Retracting Case
7 Spirol Pin
8 Nyloc Bolt
9 Washer
10 Latch Compression Spring
11 Upper Latch Body
12 Latch
13 Link
14 Spirol Pin
15 Stainless Steel Ball
16 Landing Indicator Bushing
17 Shut-off Valve
18 Pump-in Lip Seal
19 Spindle Bushing
20 Landing Shoulder
21 Lower Latch Body
22 Hex Nut
23 Spindle
24 Shut-Off Valve,Hard
25 Valve Adjusting Washer
26 Thrust/Hanger Bearing
27 Spindle Bearing
28 Compression Spring
29 Stover Lock Nut
30 Inner Tube Cap
31 Grease Fitting
32 Stainless Steel Ball
33 Check Valve Body
2 Detent Plunger
3 Compression Spring
4 Spirol Pin
5 Spearhead Base
6 Latch Retracting Case
7 Spirol Pin
8 Nyloc Bolt
9 Washer
10 Latch Compression Spring
11 Upper Latch Body
12 Latch
13 Link
14 Spirol Pin
15 Stainless Steel Ball
16 Landing Indicator Bushing
17 Shut-off Valve
18 Pump-in Lip Seal
19 Spindle Bushing
20 Landing Shoulder
21 Lower Latch Body
22 Hex Nut
23 Spindle
24 Shut-Off Valve,Hard
25 Valve Adjusting Washer
26 Thrust/Hanger Bearing
27 Spindle Bearing
28 Compression Spring
29 Stover Lock Nut
30 Inner Tube Cap
31 Grease Fitting
32 Stainless Steel Ball
33 Check Valve Body
We have successively put into operation the international advanced intelligent production lines,it has two intelligent production lines with an annual output of more than 150,000 drill rods.
In the future,there will be 8 intelligent production lines in the second and third phases with an annual output of more than 600,000 drill rods.
Our core productivity is supported by America Inductotherm heat treatment equipment and MAZAK CNC machine tools,Siemens control system.We will achieve our goal of the overall production intelligence in our factory in next 3 years which will be the standard equipment of Au-prospect.
In the future,there will be 8 intelligent production lines in the second and third phases with an annual output of more than 600,000 drill rods.
Our core productivity is supported by America Inductotherm heat treatment equipment and MAZAK CNC machine tools,Siemens control system.We will achieve our goal of the overall production intelligence in our factory in next 3 years which will be the standard equipment of Au-prospect.
Q1. Where is your factory?
A1: Our factory is located in Wuxi, Jiangsu, China, it takes only about 2 hours driving from Shanghai.Q2. How do you control quality?
A2: ISO9001 has been passed. Mill Test Certificate is supplied , meanwhile the Third Party Inspection is available according to customers' requirement.
Q3. What are the advantages of your company?
A3: Our core productivity is supported by American Inductotherm heat treatment equipment, MAZAK CNC machine tools, and Siemens control system.
Q4. Can you arrange the shipment?
A4: Yes, of course, we have our forwarders which has cooperated with us for years.
Q5. How about the delivery time?
A5: It will be decided by the orders. Normally within 3 days after receiving your advance payment if we have stock.
Q6. Can you provide sample?
A6: Small samples in store can be provided for free.
