Studs and Spikes Tire Tungsten Carbide

Looking for durable and reliable tire studs and spikes? Our factory produces high-quality tungsten carbide studs and spikes for all your tire traction needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Carbide pins
Application
Metal Recycling Machine, Metal Cutting Machine, Metal Processing Machinery Parts, Metal Engraving Machinery, Metal Casting Machinery
Transport Package
as Customer Demand
Specification
Customized
Trademark
HONGZUAN
Origin
Hunan, China
Production Capacity
20 Ton Per Month

Product Description

Feature of Tungsten Carbide TIPS
Product Name Tungsten carbide pour tip needle , carbide pin
Material 100% Virgin Tungsten Carbide
Grade K10/K20/K30/K40. etc
Application Scribing, etch or mark very hard objects
Surfacetreatment Unground/ground
Diameter range Diameter: 1.000mm~10.000mm, length to request
Cutting angle 30°, 45°, 60°, 90°, 120°

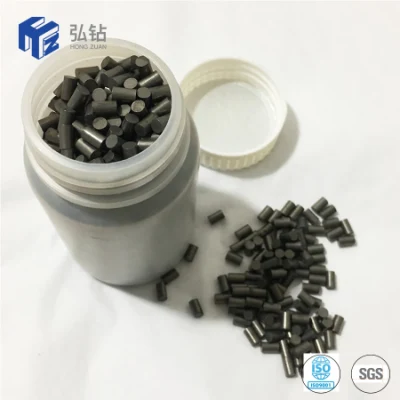

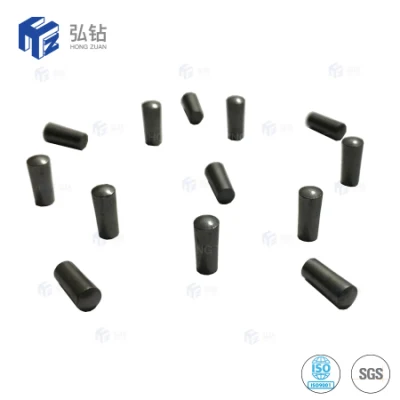

Carbide pins, carbide stud, carbide spike, hardmetal pin

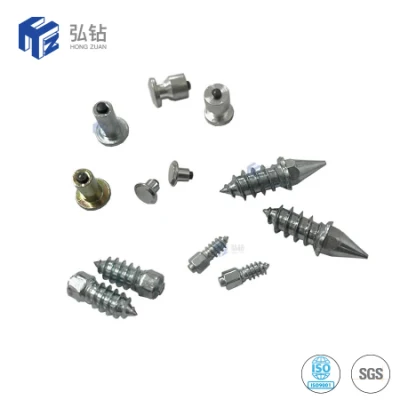

We produce a series of Tungsten Carbide Pins for the tire stud/spike, due to the
application of the double-action pressing machines and the well-prepared materials, our
carbide pins can be controlled within a very tight tolerance at +/-0.05mm
All of our materials for the carbide pins /stud are made by our own Powder Plant,
So our quality is fine and the price is competitive. Any of your inquiries about our carbide pins will be warmly welcomed
Studs and Spikes Tire Tungsten CarbideStuds and Spikes Tire Tungsten CarbideStuds and Spikes Tire Tungsten Carbide




Applications of Tungsten Carbide TIPS

Studs and Spikes Tire Tungsten Carbide
We offer different size carbide tips&pins depending on your needs.

The carbide tips&pins have wide applications:

1. As scriber tips, they are assembling on tool bit for engraving or scribing on very hard items, like aluminum, brass, bronze, metals, steel, glass, ceramics, hardwood, plastics, concrete and so on.



2. As glass breaker, they're designed for breaking glass or hard surface when emergency.



3. As Bush Hammer carbide tips, they're mounted on an 11-inch or 9-inch plate, to be run under a concrete floor grinder. The tool is designed to break down difficult coatings, and leaves a textured surface to promoted bonding of future coatings or overlays.

What can Bush Hammers do?

a.Surface Prep for coatings

b.Quickly expose large aggregate

c.Remove hard coatings and overlays Ideal for use on exterior spaces and creating anti-slip surfaces. They also work great for removal of thin coatings when prepping the floor for epoxy application.



4. For making core clampers of Lathes and Periphery Grinders.

  Grade for tungsten carbide TIPS

Grade/ Properties / Application
Grade ISO  Performance Performance&application recommended
Density Bend Strength Hardness
G/Cm 3 N/mm 2 HRA
YG6X K10 14.8-15.1 ≥1560 ≥91.0 Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron.
YG6A K10 14.7-15.1 ≥1580 ≥91.0
YG6 K20 14.7-15.1 ≥1670 ≥89.5 Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc.
YG8 K30 14.6-14.9 ≥1840 ≥89 Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts.
YG10X   14.5 2400 91.5 Fine grain alloy, good wear resistance,Used for processing hard wood, veneer board,PCB,PVC and metals.

YL10.2   14.5 2400 91.8 Forming or stamping dies for metal powders and nonmental powders.
YG13X   14.3 2600 89.5 For oil cone dril bits, for medium soft and medium-hard rocks.




Company Profile
Studs and Spikes Tire Tungsten CarbideStuds and Spikes Tire Tungsten Carbide
ZhuZhou HongTong Tungsten Carbide Co., Ltd.,specialized in production carbide products more than 20 years and located in the hometown of tungsten carbide in China. We can manufacture all kind of tungsten carbide products. Our products are utilized in industrial, aerospace, machining, metallurgy, oil drilling, mining tools, electronic communications, construction applications. Now we are exporting to 46 countries. including USA, Russian , India , Italy, Poland ,France,Brazil etc .

We have a professional QC team follow to the System of ISO9001:2015, Covering the Raw Materials Incoming, Production Processes,Finished Products and Packaging to ensure high quality products output.

Studs and Spikes Tire Tungsten Carbide

Studs and Spikes Tire Tungsten Carbide

We mainly produce Tungsten Carbide Ball and Seat, Agriculture wear parts plates, Carbide tips, Carbide tiles,
HPGR Stud pins, Brazed Inserts, Gripper Pads, Buttons, VSI Bars, Rod, Strips, PDC substrate, Weld on teeth,
Bushings, Wire Drawing Dies, Heading Dies, Seal Ring, Nozzles, and other customized carbide products.


Studs and Spikes Tire Tungsten Carbide

Product packaging
Studs and Spikes Tire Tungsten Carbide

FAQ

Q1 : Are you Factory or trading company ?
We are Factory with 20 years of production experience.

Q2: What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning,
stoving, oil coating, cover pressing, testing, package.

Q3: How to control the products quality?
All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.

Q4: What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large quantity, by sea.

Q5: Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products

Q6: How to place an order for Good performance nonstandard products by stellite alloy? 1. Fill your Order List in our online
Inquiry System (Also you can directly contact our salesperson by E-mail / Skype / Whats App) 2. We will make a feedback to you ASAP after receive your order list.

Q7: What's your delivery time ?
For the normal type which we have mold it takes 7-15 days after receiving the advance payment. For the non standard which we do not have mold it takes 15-35 days after receiving the advance payment.

Q8:How to contact us?
You can Contact me by E-mail, Trademanager, Skype, Mobile, whatsapp and so on
