gripper dies
Name
Tungsten Carbide Nail Dies
Usage
Carbide Nail Making
Grade
Yg16c Yg20c Yg22c Yg25c
Other Name
Gripper Dies
Transport Package
in Paper Carton or Wooden Cases
Specification
many types
Trademark
ubt
Origin
Hunan China
HS Code
84090000
Production Capacity
65 Tons a Month
Product Description
We professional making tungsten carbide nail making dies, tungsten carbide gripper dies, cutter dies, heading dies
Here is some of the carbide nail making dies drawings:
Types of the nail making dies

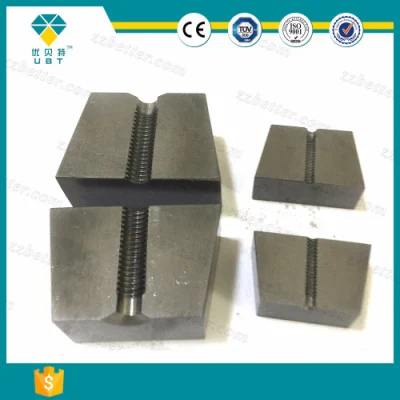

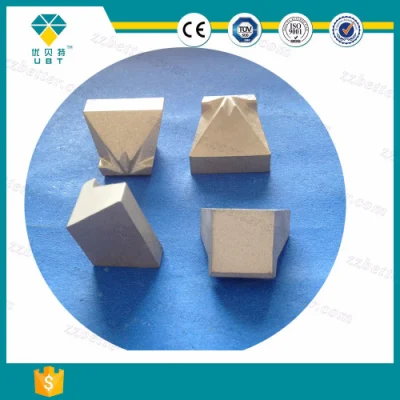

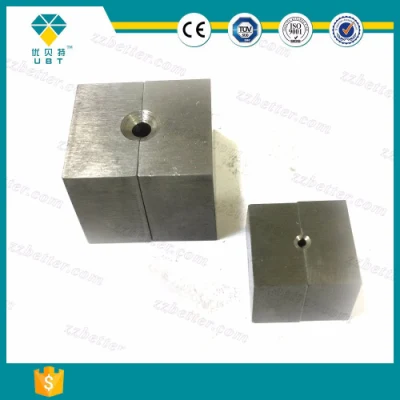

some pictures of our gripper die, cutter dies, heading dies, dies for making nails.
Here is some of the carbide nail making dies drawings:
Types of the nail making dies
| Type | Size(mm) | |||||
| A | B | S | H | h | c | |
| BT01 | 13.00 | 16 | 5.7 | 10-20 | 2 | 75 |
| BT02 | 13.00 | 17 | 7.7 | 10-20 | 2.5 | 75 |
| BT03 | 16.40 | 19.3 | 7.7 | 10-20 | 2.5 | 75 |
| BT04 | 18.00 | 21.9 | 6.9 | 10-20 | 2 | 75 |
| BT05 | 18.60 | 23 | 8.8 | 10-20 | 2.7 | 75 |
| BT06 | 18.90 | 24 | 10.6 | 10-20 | 2.5 | 75 |
| BT07 | 10.00 | 13 | 5.6 | 10-20 | 1.2 | 90 |
| BT08 | 13.00 | 17 | 9 | 10-20 | 2.3 | 75 |
| BT09 | 14.50 | 20 | 10 | 10-20 | 3 | 75 |
| BT10 | 18.00 | 23.5 | 10.5 | 10-20 | 2.3 | 75 |
| BT11 | 19.00 | 25.8 | 12.5 | 10-20 | 4 | 75 |
| BT12 | 12.00 | 16 | 9 | 10-20 | 2.5 | 75 |
| BT13 | 17.00 | 21 | 10 | 10-20 | 2 | 90 |
| BT14 | 18.00 | 22 | 9 | 10-20 | 2.6 | 90 |
| BT15 | 20.00 | 24 | 11 | 10-20 | 2.6 | 90 |
| BT16 | 13.00 | 18.5 | 9 | 10-20 | 2.5 | 90 |
| BT17 | 19.00 | 21 | 10 | 10-20 | 2.5 | 90 |
| BT18 | 9.00 | 11 | 5.5 | 10-20 | 2 | 90 |
| BT19 | 18.00 | 20 | 9 | 10-20 | 2.5 | 90 |
| BT20 | 12.70 | 15.5 | 5.7 | 10-20 | 2.2 | 75 |
| BT21 | 12.80 | 16.1 | 7 | 10-20 | 2.5 | 75 |
| BT22 | 14.00 | 17.5 | 7.7 | 10-20 | 2.8 | 75 |
| BT23 | 16.00 | 20 | 7.6 | 10-20 | 2.8 | 75 |
| BT24 | 18.20 | 21.9 | 6.3 | 10-20 | 1.8 | 75 |
| BT25 | 17.30 | 22 | 8.9 | 10-20 | 3 | 75 |
| BT26 | 18.50 | 24 | 10.2 | 10-20 | 3.5 | 75 |
