Basic Info.
Model NO.
YL10.2
Size
Small
Customized
Non-Customized
Type
Cutting Tool
Material
Tungsten Carbide
Certification
ISO 9001:2000
Hardness
91.8hra
Strength
3800MPa
Density
14.45g/cm3
Diameter
2.0(H6)
Hole Diameter
0.2mm
Length
330mm
Process Request
Grinding H6,H5,H6, H7, H6.H7 etc
Grain Size
0.7um
Cobalt%
10%
Wc %
90%
Transport Package
25kg. Carton
Specification
YL10.2
Trademark
ZZUP
Origin
Zhuzhou, Hunan, China
HS Code
8209009000
Production Capacity
10000000PCS/Month
Packaging & Delivery
Package Size
35.00cm * 8.00cm * 5.00cm
Package Gross Weight
0.500kg
Product Description

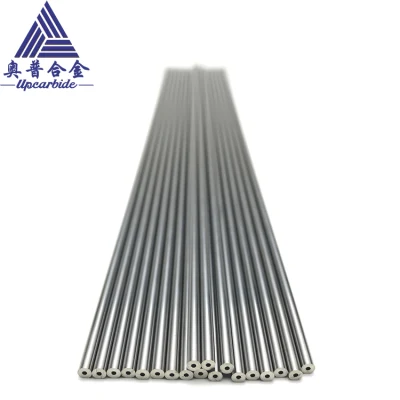

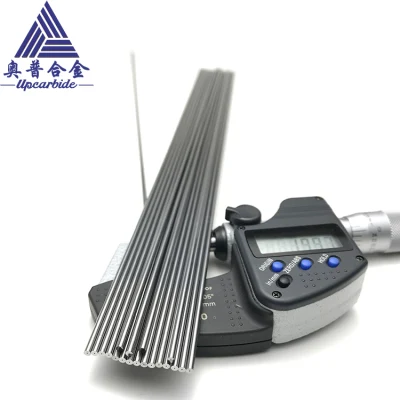

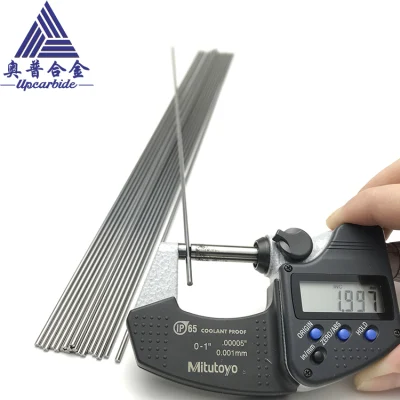

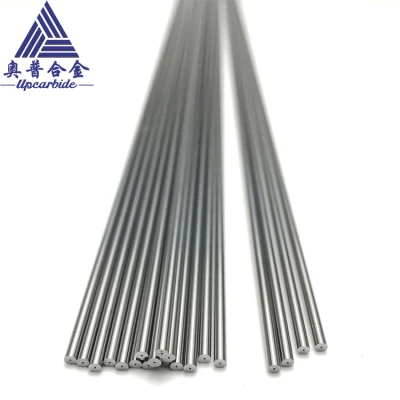

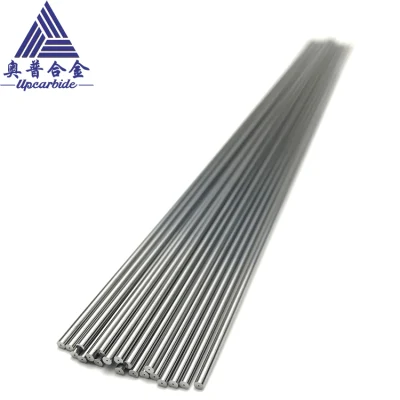

The Tungsten Carbide Rods, Blanks are made by Extrusion from the highest purity of Materials and Sinter Hiped. Be of very high quality and tool peroformances, the grade for Cutting tools are usually in Sub-micron Grain and Ultra-fine Grain. As demand,the other grade can be custom-made.tungsten carbide round rod is mainly applied in making drills, end mills and reamers. And it is also used for cutting, punching and measuring tools. It is used in the industries of paper making, package, printing, non-ferrous metal processing.
Customization Support
| Grades | YL10.2 |
| Density(g/cm3) | 14.48 |
| Hardness(HRA) | ≥91.8 |
| T.R.S(Mpa) | ≥3800 |
| Grain size(um) | 0.7 |
| Composition(%) | 10%CO 90%WC |
| Diameter(mm) | 8.00 |
| Length(mm) | 330 |
| Type | H6 Grinding |
