Basic Info.
Model NO.

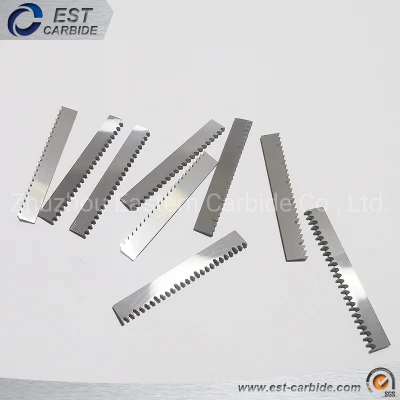

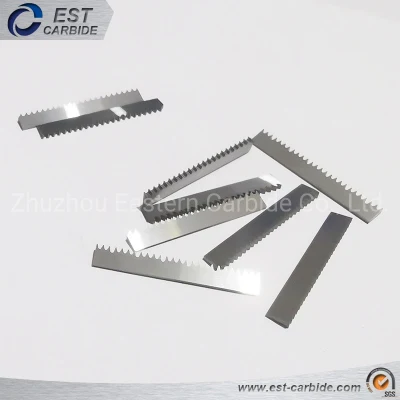

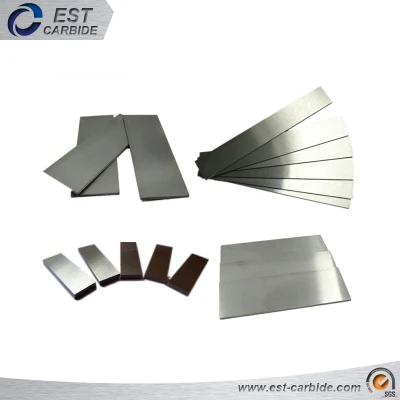

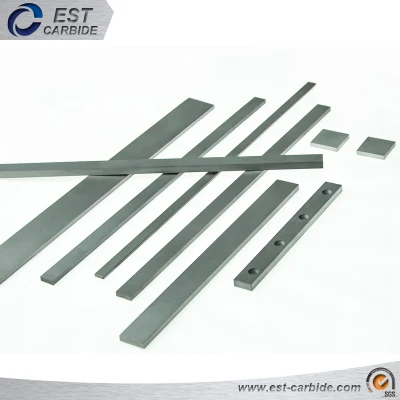

Tungsten carbide strips YG6X cemented carbide bar
Certification
ISO 9001:2008, ISO 9001:2000
Transport Package
Standard Packing for Export
Specification
WC+Co Powder
Trademark
Laser mark
Origin
Zhuzhou City, Hunan, China
Product Description
The main using purpose of tungsten carbide strips is to make cutting tools for woodworking, like forming tools and different kinds of blades to cut Nature wood, HDF, MDF, Ply wood, Particle board and some non-metal material. It is very important to select the right grade to match the using purpose, we have to consider the physical properties of the processing object, also the working condition for tools, like running speed, impact.
We provide a wide range of squared and flat Carbide Strips in different dimensions. Also, we have rich experience for making customized strips, like the strips with single cutting angle, double cutting angles, strips with cutting angles and also holes.
Recommend grade list of yg6 carbide strips:
Product sizes of yg6 carbide strips:
Type (LxWxT) | Length(mm) | Width(mm) | Thickness(mm) | Tolerance standard |
| 140 x W x T | 140 | 6~18 | 1.5~6.0 | Unground: +/-0.2 mm for width and thickness, +1%xL for length. Ground: +/-0.02 mm for length, width and thckness The above the the normal standard that we follow, we also can do special tolerance |
| 140 x W x T | 140 | 20~25 | 2.0~6.0 | |
| 165 x W x T | 165 | 6~18 | 1.5~6.0 | |
| 165 x W x T | 165 | 20~28 | 2.0~6.0 | |
| 165 x W x T | 165 | 30~40 | 2.5~6.0 | |
| 230 x W x T | 230 | 8~22 | 2.0~6.0 | |
| 230 x W x T | 230 | 25~40 | 2.5~6.0 | |
| 320 x W x T | 320 | 8~24 | 2.0~6.0 | |
| 320 x W x T | 320 | 25~40 | 2.5~6.0 |
We also can produce the customized carbide strips, not only the sizes & shape, but also the grades based on your using purpose. If you need more specification of the tungsten carbie strips, please kindly contact us.
We also have many non-standard types for tungsten carbide strips, please contact us for more information.
Quality Control System: We always follow the high quality standard for production, from the material preparing to final product ready, all product will go through 3 inspections before we send them to you. Our professional teams will take care of your product and ensure the good and stable quality for all batches.
Our regular product is tungsten carbide tips, carbide inserts, end mills,carbide saw tips,carbide mining parts, carbide rods, plates and stripes.
We also have rich experience for customized product, we make your designs become real product, which perfectly match your need. We have many successful projects on the for our clients in different countries.
