Basic Info.
Driving Motor Type
Na
Mold Cavity Technology
CNC Milling
Milling Speed
High Speed
Parts Detection Method
Geometric Detection
Transport Package
Plastic Box
Trademark
Grand Sea
Origin
China
HS Code
8209009000
Production Capacity
1000t/Year
Product Description

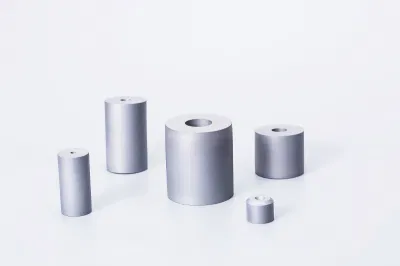

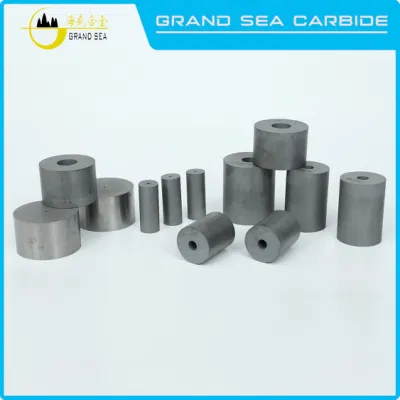

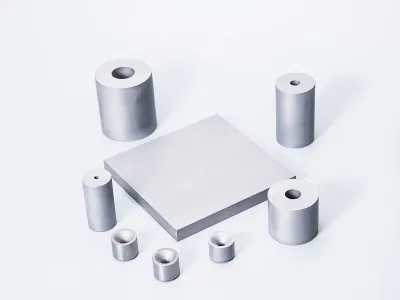

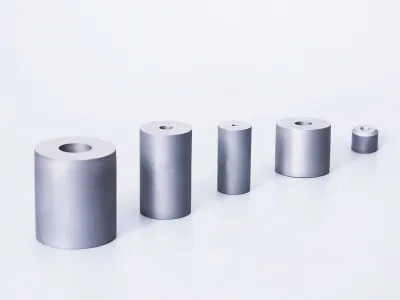

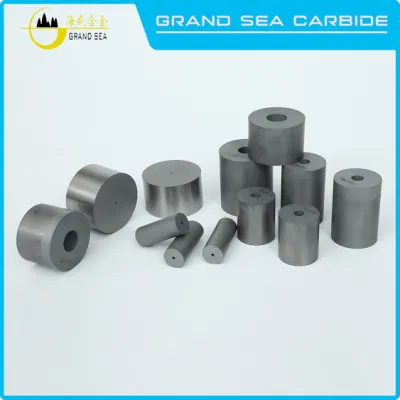

Cemented Carbide Die for Cold Heading Stamping Mould Punching
Grand Sea Cemented Carbide produced Carbide Cold Heading Dies is used on the cold forging machine, making the materials cutting, reforming, forming to the mould.
Our advantages:
1. Made by virgin raw material.
2. HIP (Hot Isostatic Press) sintering ensures the stable microstructure, the service life time is longer, die change is less, can improve the working & production efficiency.
3. We also supply carbide dies with coarse grain size, which has high impact resistance ability and can be used to make big size carbide dies.
Mateials Properties and Application
| Grades | Co% | Grain size | Hardness | Density | Flexural strength Mpa | Elastic Modulus Gpa | Impact Toughmess J/cm2 | Aapplications |
| (HRA)±0.5 | (g/cm³)±0.1 | |||||||
| HG6 | 15% | 2 | 86.5 | 13.95 | 3000 | 440 | 6.4 | Suitsblr for engineering teeth, cold forging die, with high wear and impact resistance |
| HG7 | 18% | 2 | 85 | 13.75 | 2800 | 410 | 7.4 | |
| HD9 | 24% | 2 | 82 | 13.10 | 2800 | 340 | 10 | |
| HD11 | 21% | 2 | 84.5 | 13.45 | 2800 | 340 | 8.2 | Suitable for strict requirement cold forging area, with high toughness, impact resistance and heat resistance |
| HD12 | 24% | 2 | 82.5 | 13.15 | 2800 | 340 | 10.4 |
