Product Description
Featuring high hardness, tungsten carbide balls are ideal for applications requiring resistance to wear, impact, abrasion, or corrosion, such as ball valves, precision hydraulic bearings, gauging and checking instruments, and grinding components.

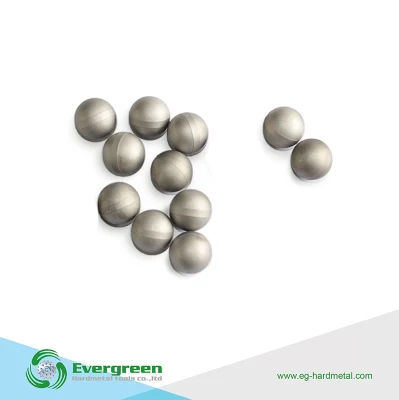

E.G. offers carbide balls in varied grades, We supply both ground and unground tungsten carbide balls. Apart from standard-sized balls, we also offer customization services according to your requirements. Our sales team and engineers will work together to provide the most cost-efficient solution for you.
Our Advantages:
1:High strength, high wear resistance, high precision, high temperature resistant, corrosion resistant.
2:They are mainly used for the sealing of valves of oil pumps in petroleum industry's sand containing wells, viscous oil wells, sea oil wells and high pressure sulfur resistant oil wells, etc.
3 They are used with compatible cemented carbide valve seats. The surface finish, tolerance class and tolerances of dimensions have respectively reached the standards of the machine industry: G5, G10, G16, G40 and G100 of JB/T 9145-1999.
4:Precision machined cemented carbide balls of other grades and specifications are also available based on customers' demands.
5:Compatible high precision valve seats can also be made available.
- 100% virgin micro-grain carbide.
- High and consistent quality,Impacts, wear and abrasion, corrosion, and hard shocks resistance.
- Varied grades and specifications.
- Customization services.
YG6 YG8 tungsten carbide ball for valve pair & oil industry
Product Description1: Diameter: Ø0.3~ø100mm
2: Application :Tungsten carbide ball is very wide, such as: precision parts punching and drawing, precision bearing, instrument, instrument, pen making, spraying machine, water pump, mechanical fittings, sealing valve, brake pump, punching hole, oil field. Hydrochloric acid laboratory, hardness measuring instrument, fishing gear, counterweight, decoration, finishing and other high-end industries
Tungsten Carbide balls, commonly known as tungsten steel balls, refer to balls and balls made of cemented carbide.
Carbide balls mainly include rough balls, fine grinding balls, punching balls, bearing balls, valve balls, non-magnetic balls, Monel balls, through-hole balls, measuring balls, color scraping balls and pen balls.
| Product name | Tungsten carbide balls |
| Series | YG6 YG8 YN6 YN8 |
| Feature | Large hard Tungsten Carbide ball has high hardness, wear resistance, corrosion resistance, bending resistance, and bad use environment, and can replace all steel ball products. Carbide ball hardness ≥ 90.5, density = 14.9g/cm3. |
| Density | 14.9g/cm3 |
| Product process line | The production process of cemented carbide ball is similar to that of other cemented carbide products, mainly including powder preparation → recipe according to application → wet grinding → mixing → crushing → drying → sieving → adding molding agent → drying → sieving Prepared mix → granulation → cold isostatic pressing → forming → sintering → forming (blank) →grinding → packaging → storage. According to the specific application requirements and related parameters, there are carbide alloy ball, tungsten steel ball, tungsten ball, high-density alloy ball and other carbide ball products. The smallest carbide ball can do about 0.3 in diameter. |
Various Size of Aseeder tungsten carbide balls in many types of tungsten carbide grade are available
| Grade | Density ( g/cm3) | Hardness ( HRA) | T.R.S(MPa) | Grain size ( μm) | Composition ( % ) | Equal to ISO |
| YG8 | 14.65~14.85 | ≥89.5 | ≥2320 | 1.2~2.0 | 8%CO 92%WC | K20 |
| YG6 | 14.85~15.05 | ≥90.0 | ≥2150 | 1.2~2.0 | 6%CO 94%WC | K10 |
| Dia.(mm) | Dia.(inch) | Dia.(mm) | Dia.(inch) |
| 2 | 3/38 | 8 | 23/73 |
| 2.38125 | 3/32 | 9.525 | 3/8 |
| 2.5 | 6/61 | 10 | 37/94 |
| 3 | 2/17 | 11.1125 | 7/16 |
| 3.175 | 1/8 | 12 | 43/91 |
| 3.969 | 5/32 | 12.7 | 1/2 |
| 4 | 3/19 | 13.494 | 17/32 |
| 4.7625 | 3/16 | 14 | 43/78 |
| 5 | 12/61 | 14.2875 | 9/16 |
| 5.556 | 7/32 | 15 | 13/22 |
| 6 | 13/55 | 15.875 | 5/8 |
| 6.35 | 1/4 | 16 | 17/27 |
| 7 | 8/29 | 19.05 | 3/4 |
| 7.938 | 5/16 | 20 | 37/47 |
| Tolerances: AFBMA Ball Tolerances Table | |||||
| Grade | Sphericity in inches | Sphericity in mm | Basic Diameter Tolerance in inches | Basic Diameter 2 in mm | Maximun Surface Roughness |
| G3 | 0.000003" | 0.0000762mm | +/-0.00003" | +/-0.000762mm | 0.5 |
| G5 | 0.000005" | 0.000127mm | +/-0.00005" | +/-0.00127mm | 0.8 |
| G10 | 0.000010" | 0.000254mm | +/-0.0001" | +/-0.00254mm | 1 |
| G25 | 0.000025" | 0.000635mm | +/-0.0001" | +/-0.00254mm | 2 |
| G50 | 0.000050" | 0.00127mm | +/-0.0002" | +/-0.00508mm | 3 |
| G100 | 0.0001" | 0.00254mm | +/-0.0005" | +/-0.0127mm | 5 |
| G200 | 0.0002" | 0.00508mm | +/-0.001" | +/-0.0254mm | 8 |
| G500 | 0.0005" | 0.0127mm | +/-0.002" | +/-0.0508mm | |
| G1000 | 0.001" | 0.0254mm | +/-0.005" | +/-0.127mm | |
