Basic Info.
Model NO.
Customized or Non-Standard Wear Parts
Wc+Co Powder
100% Virgin Material
Cobalt Percentage
From 3% to 30% Based on Different Grades
Grain Sizes Selection
Ultra Fine, Fine, Medium, Coarse
Grades
K10/K20/K30/K40/Yl10.2/Yg6/Yg6X/Yg8/Yg10X/Yl10.2
Surface Finishing
Polished and Unpolished
Main Using Purpose
Metal Machining and Wear Parts
Customized Product
Available
Transport Package
Standard Packing for Export
Specification
WC+Co Powder
Trademark
Laser mark available
Origin
Zhuzhou City, Hunan, China
Product Description
Product Description

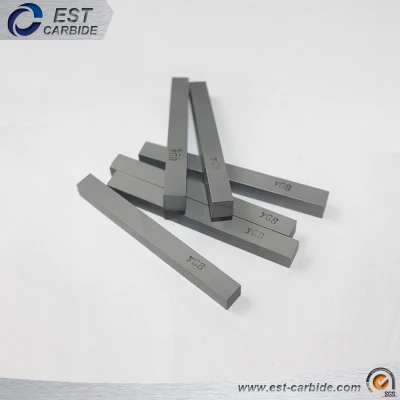

Eastern Carbide, we provide a wide range of standard tungsten carbide plates in different dimensions, also have many carbide plates done by our clients' designs, like the plates with single cutting angle, double cutting angles, carbide plates with slots, carbide plates with fixing straight holes, tapered holes, threaded holes. The minimum thickness we can do is 0.5 mm and maximum length is 700 mm.
Product details:
Specification
Also we many other different sizes of the plates, like 50x50xT, 100x100xT, 120x120xT........, in addition, we can do customized size, simply you can find the plates from us in size width 5 ~300 mm x Depth 5~700 mm x Thickness 0.5~200 mm. For further information, please kindly contact us.
Basic grades from us for tungsten carbide plates blocks
Applications:
Main used as mold material, wear parts and protection parts in different designs and dimensions, normally fixed by brazing process or fastening. High hardness with suitable bending strength will provide very long tool life for the carbide parts, can save your costs and time for production.
About us
Our advantages:
Delivery ways:
-Express companies: DHL, FedEx, TNT, UPS, etc.
-Airlines.
-Ocean shipping
-Land transportation
Packing:
A. Standard packing
-Plastic boxes with foam inside and carton outside.
-Paper boxes with foam inside and carton outside.
-Inner boxes/packing material inside and plywood box outside (for heavy product).
B. Customized packing available: We can do special packing based on client's requirements.
FAQ:
Q. Are you manufacturer or trading company ?
A. We are the manufacturer with our own workshop and production teams.
Q. How to ensure the good quality from you?
All product will go through inspection at least by 3 times:
Material checking: Use the same batch of material, to make carbide pieces to test the compositions and mechanical properties, like density, hardness, bending strength, Cobalt Magnetism, etc.
Semi product checking: Main checking the
Final product checking: Check all data and compare to the target sample we made.
Also check all dimensions and surface finishing.
Q: How long is the delivery time?
For standard product, within 15days
For customized product, within 22 days
Q: Is your product customized or standard?
A: We have the regular product and also have rich experience for customized parts.
We have many success projects that make the product based on your own designs.
Q: What are the payment terms?
Regular payment term: 30% deposit and balance paid before delivery
Other options:
Full payment before delivery
Full payment after receiving the goods
O/A 30 days
Eastern Carbide, we provide a wide range of standard tungsten carbide plates in different dimensions, also have many carbide plates done by our clients' designs, like the plates with single cutting angle, double cutting angles, carbide plates with slots, carbide plates with fixing straight holes, tapered holes, threaded holes. The minimum thickness we can do is 0.5 mm and maximum length is 700 mm.
Product details:
Specification
| L | W | S |
| 200 | 200 | 10-45 |
| 150 | 150 | 10-45 |
| 150 | 130 | 10-45 |
| 150 | 100 | 10-45 |
| 150 | 80 | 10-45 |
| 120 | 120 | 10-45 |
| 100 | 100 | 10-50 |
| 100 | 50 | 10-50 |
| 100 | 45 | 10-50 |
| 80 | 55 | 10-50 |
| 80 | 40 | 10-40 |
| 70 | 35 | 5-40 |
| 45 | 25 | 5-20 |
| 35 | 19 | 5-20 |
| 20 | 20 | 5-20 |
| 18 | 13 | 5-20 |
| ... | ... | ... |
Basic grades from us for tungsten carbide plates blocks
| ISO Grade | Co% | Density(g/cm3) | Hardness | Bending Strength(N/mm2) | Compression Strength(N/mm2) | Grain Size(μm) |
| HRA (ISO3738) | ||||||
| E10S | 6 | 14.8 | 90.5 | 2900 | 5100 | 4.0 |
| E20S | 13.5 | 14.0 | 90 | 3600 | 5200 | 1.5 |
| E30 | 12 | 14.25 | 90 | 3500 | 4900 | 1.8 |
| E40 | 12.5 | 14.1 | 89.5 | 3600 | 4600 | 2.0 |
| E50 | 14.0 | 14..0 | 88.5 | 3700 | 4500 | 2.0 |
| E60 | 15 | 13.9 | 87.5 | 3500 | 4200 | <0.5 |
Applications:
Main used as mold material, wear parts and protection parts in different designs and dimensions, normally fixed by brazing process or fastening. High hardness with suitable bending strength will provide very long tool life for the carbide parts, can save your costs and time for production.
About us
Our advantages:
- Professional team for production: Have more than 10 years experience for production on carbide filed.
- Fast delivery based on high production capability.
- Strict quality control system: Ensure our product in good and stable quality.
- Rich experience on customized products.
- Technical support: Help you get the best solution.
Delivery ways:
-Express companies: DHL, FedEx, TNT, UPS, etc.
-Airlines.
-Ocean shipping
-Land transportation
Packing:
A. Standard packing
-Plastic boxes with foam inside and carton outside.
-Paper boxes with foam inside and carton outside.
-Inner boxes/packing material inside and plywood box outside (for heavy product).
B. Customized packing available: We can do special packing based on client's requirements.
FAQ:
Q. Are you manufacturer or trading company ?
A. We are the manufacturer with our own workshop and production teams.
Q. How to ensure the good quality from you?
All product will go through inspection at least by 3 times:
Material checking: Use the same batch of material, to make carbide pieces to test the compositions and mechanical properties, like density, hardness, bending strength, Cobalt Magnetism, etc.
Semi product checking: Main checking the
Final product checking: Check all data and compare to the target sample we made.
Also check all dimensions and surface finishing.
Q: How long is the delivery time?
For standard product, within 15days
For customized product, within 22 days
Q: Is your product customized or standard?
A: We have the regular product and also have rich experience for customized parts.
We have many success projects that make the product based on your own designs.
Q: What are the payment terms?
Regular payment term: 30% deposit and balance paid before delivery
Other options:
Full payment before delivery
Full payment after receiving the goods
O/A 30 days
