Basic Info.
Product Description

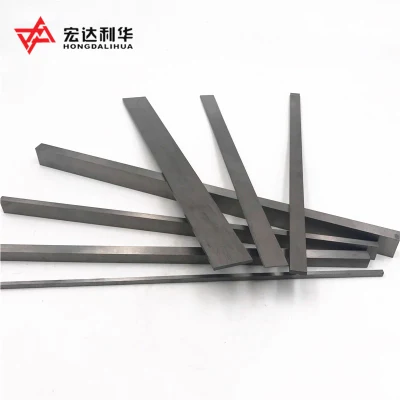

Yg8/Yg11c Customized Sizes Tungsten Carbide Strips
Product Details
| Application | It's often used in Mining, quarrying, ground engineering, etc. |
| Material | 100% raw tungsten carbide |
| Grade | K05, K10, K20, K30, K40 |
| Design&Size | OEM or ODM |
| Properties | High hardness and strength, excellent wear resistance |
| Finish | Sintered, sandblasting or polish |
| Packing | Our standard packing (paper + carton box or inner box + outer box) or as request |
| Lead time | Sample date: 5-7 working days, mass date: 20-25 working days |
| Shippment | By express( such as DHL, FedEx, TNT, UPS), by air or by sea |
| Service | We will follow up goods for our customers and help them to solve problems after sales. |
Applications
Carbide plate is a highly efficient and green material, which features qualities of stainless steel: Corrosion resistance, oxidation resistance, wear resistance, bonding proof and acid-base resistance; And ensures its good strength, toughness, bending and stretching, impact resistance
Tungsten carbide strip is used for woodworking cast iron cutting tool. It can be used in many field such as woodworking, machining of refractory alloys, stainless steel, high manganese steel, for processing cast iron, non-ferrous metal and aluminum section bar, etc
Advantage
1.Superior heat stability.
2.Anti-deformation in high temperature.
3.Fine thermal shock resistance.
4.High thermal conductivity.
5.Excellent Oxidation control ability.
6.Strong anti-corrosion in high temperature.
7.Good corrosion resistance from Chemical.
8.High-wearing feature.
9.Long usage lifetime.
Grade Recommend
The grades which used more frequently are YG8, YG15, YG20, YG10.2, YG2T, YG10X etc.
Other grades can be offered according to customers' requirements. Afterwards the board can be broken out from the panel.
| GRADE | | COBALT CONTENT | DENSITY | HARDNESS | TRS |
(%) | g/cm3 | HRA | N/mm2 | ||
K10T | K05-K10 | 4.5-6.0 | 14.95-15.05 | 92.7 | 1800 |
YG8 | K30 | 8 | 14.80 | 89.5 | 2200 |
YG6 | K20 | 6 | 14.95 | 90.5 | 1900 |
YG6X | K10 | 6 | 14.95 | 91.5 | 1800 |
YL10.2 | K30 | 10 | 14.50 | 91.8 | 2400 |
YG13X | K30-K40 | 13 | 14.30 | 89.5 | 2600 |
YG15 | K40 | 15 | 14.00 | 87.5 | 2800 |
YL20.8 | K40 | 15 | 14.00 | 88.5 | 3800 |
Unit: mm
TYPE | TOL | |||
Blank | Polished | |||
H | W | L | ||
100×100(1.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
105×105(1.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
150×150(5.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
200×200(5.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
200×100(1.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
320×200(1.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
120×120(1.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
150×120(1.0~40) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
170×80×(1.0~20) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
150×100(1.0~40) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
100×90(1.0~40) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
100×80(1.0~40) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
100×50(1.0~40) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
100×60(1.0~40) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
Company Introuduction
1) Business Type: Manufacturer, Factory.
ISO9001:2008, SGS.
Focus on Cemented Carbide Industry for more than 20 years.
2) Advanced technology, HIP sintering and precision grinding to ensure the goods performance;
3) 100% Virgin pure Raw materials;
4) Each product through the strict inspections and confirm to the requirements of the lab parameters;
5) OEM & ODM are welcomed;
6) Small order is acceptable;
7) Flexible payment terms (L/C,T/T, western union, etc);
8) Provide custom made service with customer's drawing; Other size could be offered by your requirements;
9) We make sure to provide you with the best solutions for your individual case. Whether standard items or non- standard items all available;
10) Fast delivery and high quality;
11) Best after-sale service.
About Lihua Cemented Carbide
Established in 1990, specialized in production carbide products more than 20 years and located in zhuzhou city which is the hometown of tungsten carbide in China .
Our products sold well to worldwide, has been build a long term relationship with our customers from Italy, Portugal, German, Turkey, USA, Mexico, India, Australia, South Africa etc .
Main Products
Our Main products include : Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Cusomized cutter:woodworking tool, V-cutter, textile cutter, shoes cutter ects. Any kinds of customized carbide products .
Monthly Capacity of 15Ton
We have sophisticated equipments, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine ect, Our production capacity up to 15 Ton per month. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.
Strictly QC
We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
Main Products
Packing:
In common
Firstly use inner boxes,then to outer boxes or do as customer requested.
Shipping Methods:
Shipment methods: By air or sea,DHL,UPS,FEDEX,TNT or as your resquest.
DHL: 10-14 working days
FedEx: 7 to 10 working days
UPS: 7 to 10 working days
EMS: 10-14 working days
If there is any problem, please feel free to contact us. We are pleased to be on service of you in near future.
Payment:
Less than or equal to $1000: 100% advance via Paypal ,or Western Union
Over $1000: 30% T/T advance , Balance before shipment .
Contact:
Foreign Sales Manager: Coco
Mobile: +86 13973352165 (available 24 hours.)
Website: http://lihuacarbide.en.made-in-china.com
Factory Address: Tower A, 6th Building, Block C, Auto parts park, Tianyuan zone, Zhuzhou, Hunan, 412000, China
